ROF-78K5.0-0.5SMD-R

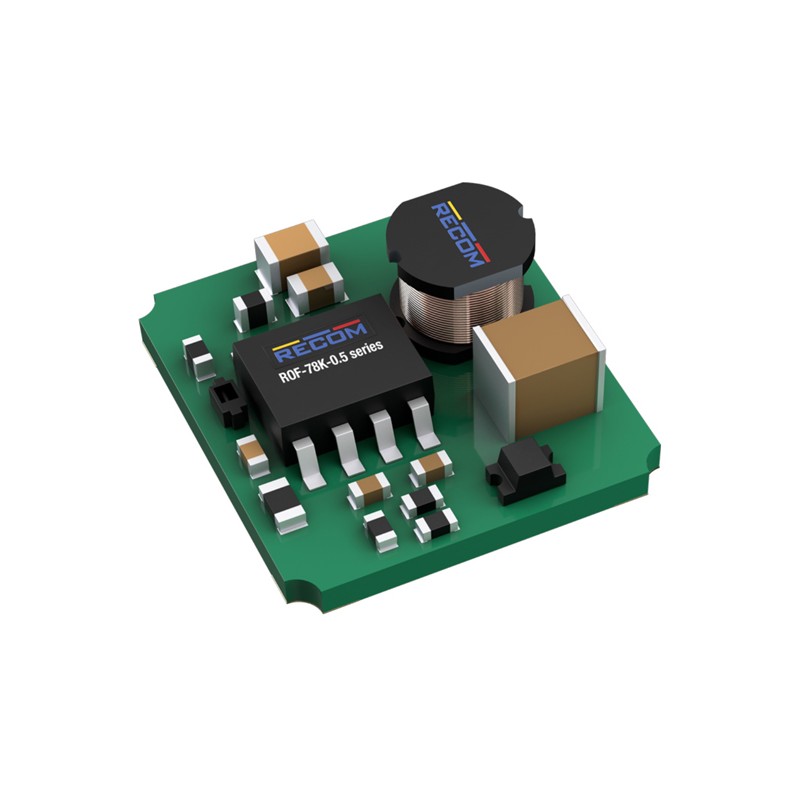

Recom DC/DC converter series ROF-78K-0.5

DC/DC switching regulators in an SMD housing with 0,5A and a wide input voltage range. These low-cost devices are suitable for direct PCB mounting and are protected against short circuit. We offer various types of this Recom series.

  • single output
  • operating temperature: -40 to +105°C
  • dimensions: 12,5x13,5x4,5mm
  • weight: 0,88g

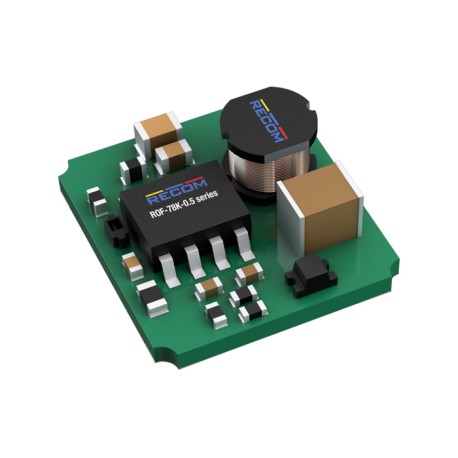

ROF-78K5.0-0.5SMD-R, Recom DC/DC switching regulators, 0,5A, SMD, ROF-78K-0.5 series

ROF-78K5.0-0.5SMD-R

260389 ROF-78K5.0-0.5SMD-R ROF-78K5.0-0.5SMD-R Recom DC/DC converter series ROF-78K-0.5. DC/DC switching regulators in an SMD housing with 0,5A and a wide input voltage range. These low-cost devices are suitable for direct PCB mounting and are protected against short circuit. We offer various types of this Recom series. single output operating temperature: -40 to +105°C dimensions: 12,5x13,5x4,5mm weight: 0,88g

Specifications

manufacturer
Manufacturer's name ROF-78K5.0-0...
Output voltage [V] 5
Input voltage range [V] 6,5...36
Efficiency [%] 85
Output current [A] 0,5
Data Sheet

Unit price

2,69 €

Stock: 0
Further delivery:
CW 38/2026

Minimum order quantity 600 units or
multiples of 600.
