RP10-2405SE

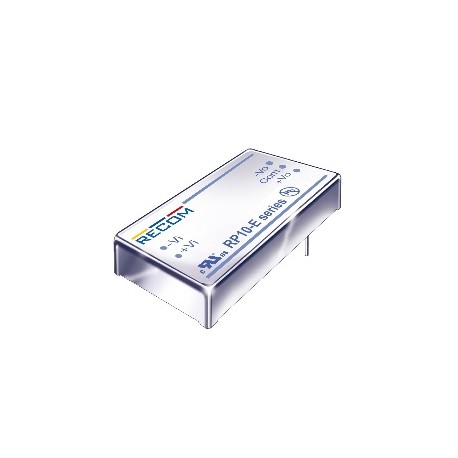

Recom DC/DC converter series RP10-E

The modules in 2x1- housing are suitable for direct PCB mounting. Their input voltage ratio is 2:1 and the isolation voltage is1.6kV AC. The devices are characterized by a fixed operating frequency and a six-sides continuous shield. We are offering the following type by Recom: RP10-2405SE.

  • single output
  • output: 10W
  • voltage accuracy (load 100%): ±1%
  • maximal ripple & noise: 50mVpp
  • operating temperature: -25 to +100°C
  • weight: 27 g
DC/DC-converter modules series RP10-E

RP10-2405SE

109053 RP10-2405SE RP10-2405SE Recom DC/DC converter series RP10-E. The modules in 2x1- housing are suitable for direct PCB mounting. Their input voltage ratio is 2:1 and the isolation voltage is1.6kV AC. The devices are characterized by a fixed operating frequency and a six-sides continuous shield. We are offering the following type by Recom: RP10-2405SE. single output output: 10W voltage accuracy (load 100%): ±1% maximal ripple & noise: 50mVpp operating temperature: -25 to +100°C weight: 27 g

Specifications

manufacturer
Manufacturer's name RP10-2405SE
Input voltage [V] 18...36
Output voltage [V] 5
Output current range [mA] 2000
Efficiency [%] 82
Data Sheet

Unit price

46,99 €

Stock: 26
Further delivery:
CW 28/2024
