RP15-2405SFW

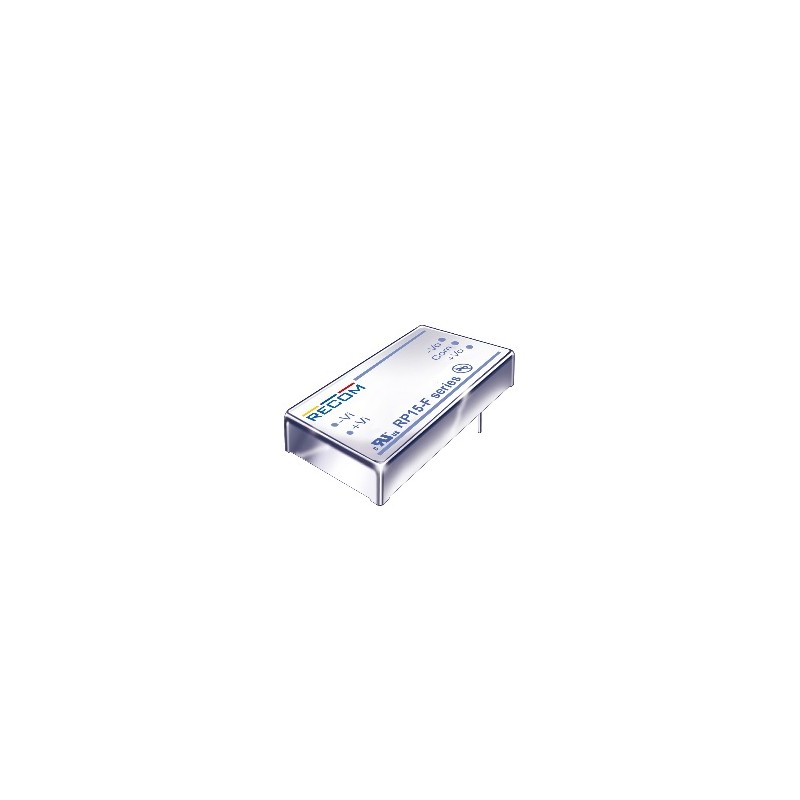

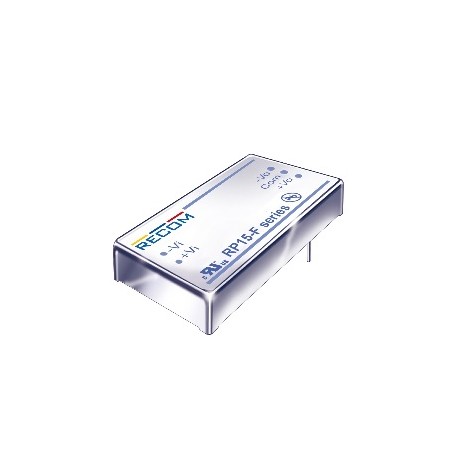

Recom DC/DC converter series RP15-FW

The modules with 2x1" housing are suitable for direct PCB mounting. Their input voltage ratio is 2:1 and the isolation voltage is 1.6kV AC. Furthermore, they are characterized by a fixed operating frequency and they are equipped with a six-sides continuous shield. We are offering the following article by Recom: RP15-2405SFW.

  • single output
  • output: 15W
  • voltage accuracy (load 100%): ±1%
  • maximal ripple & noise: 50mVpp
  • operating temperature: -40 to +75°C
  • weight: 27g
DC/DC-converter modules series RP15-FW

RP15-2405SFW

109061 RP15-2405SFW RP15-2405SFW Recom DC/DC converter series RP15-FW. The modules with 2x1" housing are suitable for direct PCB mounting. Their input voltage ratio is 2:1 and the isolation voltage is 1.6kV AC. Furthermore, they are characterized by a fixed operating frequency and they are equipped with a six-sides continuous shield. We are offering the following article by Recom: RP15-2405SFW. single output output: 15W voltage accuracy (load 100%): ±1% maximal ripple & noise: 50mVpp operating temperature: -40 to +75°C weight: 27g

Specifications

manufacturer
Manufacturer's name RP15-2405SFW
Input voltage [V] 9...36
Output voltage [V] 5
Output current range [mA] 3000
Efficiency [%] 87
Data Sheet

Unit price

59,09 €

Stock: 8
Further delivery:
CW 08/2026
