RP20-2405SF

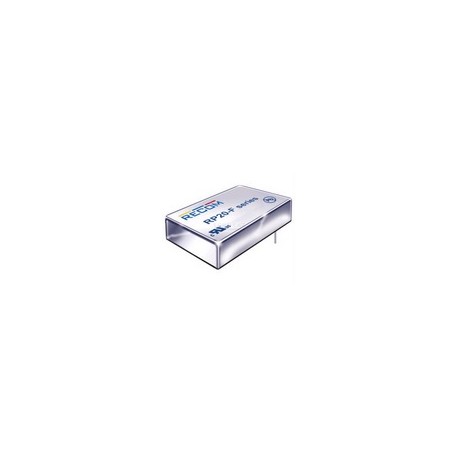

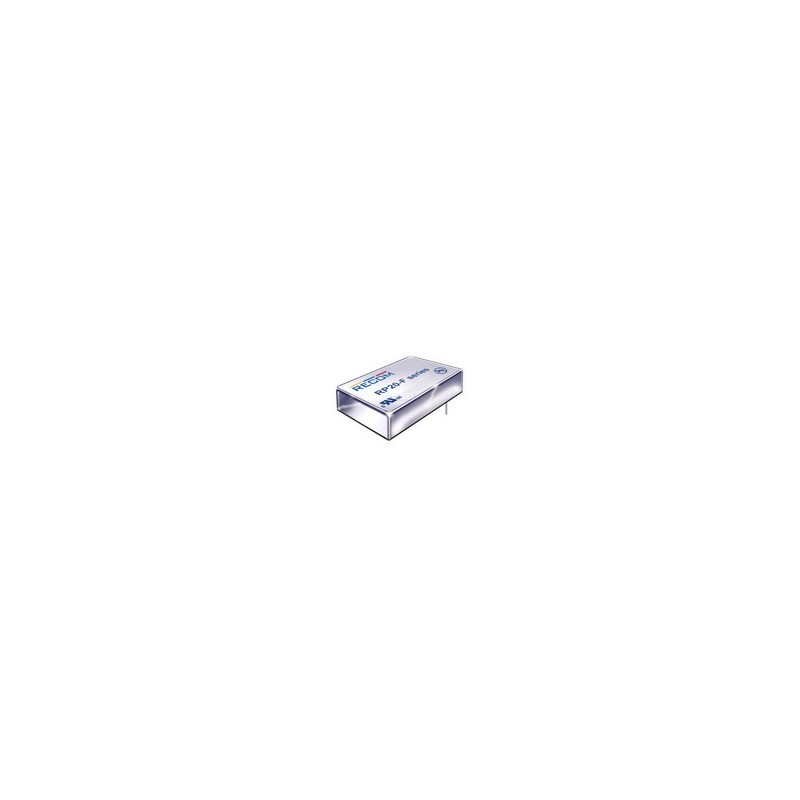

Recom DC/DC converter series RP20-F

These converter modules in 2x1- housing with six-sides continuous shield are suitable for direct PCB mounting. Their input voltage ratio is 2:1 and there is no minimum load required. The isolation is 1.6kV AC. We are offering the following type by Recom: RP20-2405SF.

  • single output
  • output: 20W
  • voltage accuracy (load 100%): ±1%
  • maximal ripple & noise: 75mVpp
  • operating temperature: -40 to +70°C
  • weight: 27g
DC/DC-converter modules series RP20-2405SF

RP20-2405SF

109062 RP20-2405SF RP20-2405SF Recom DC/DC converter series RP20-F. These converter modules in 2x1- housing with six-sides continuous shield are suitable for direct PCB mounting. Their input voltage ratio is 2:1 and there is no minimum load required. The isolation is 1.6kV AC. We are offering the following type by Recom: RP20-2405SF. single output output: 20W voltage accuracy (load 100%): ±1% maximal ripple & noise: 75mVpp operating temperature: -40 to +70°C weight: 27g

Specifications

manufacturer
Manufacturer's name RP20-2405SF
Input voltage [V] 18...36
Output voltage [V] 5
Output current range [mA] 4000
Efficiency [%] 89
Data Sheet

Unit price

59,09 €

Stock: 445
Further delivery:
CW 28/2024
