RS12-2412SZ

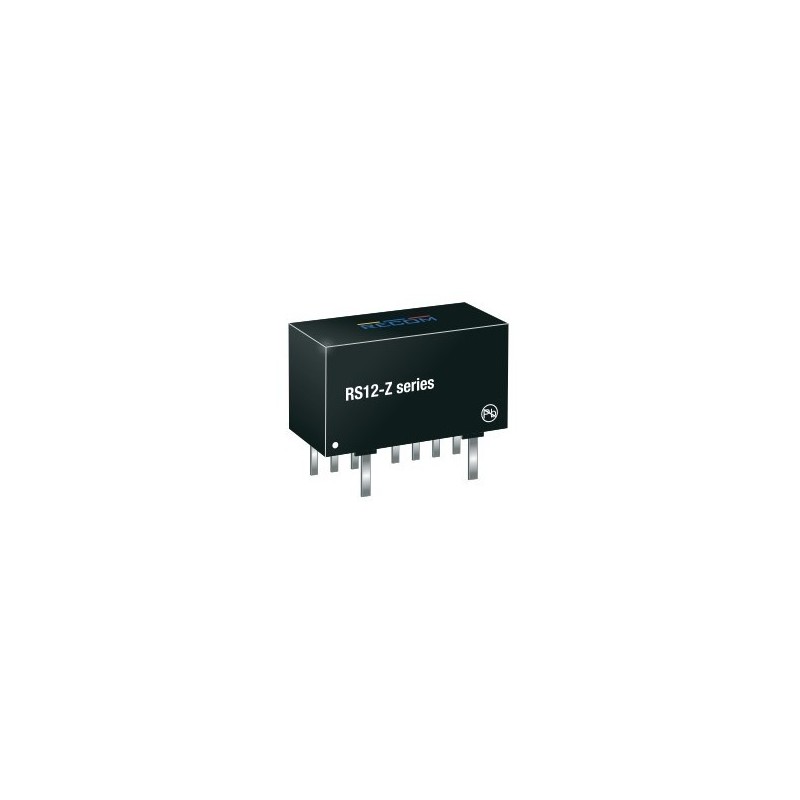

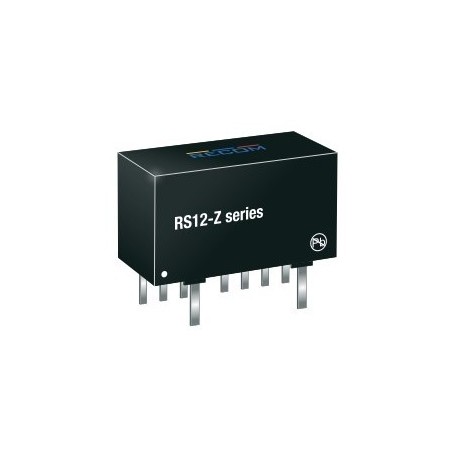

Recom DC/DC converter series RS12-Z

Converter modules in a SIL8 housing with 12W and an input voltage ratio of 4:1. These devices are suitable for direct PCB mounting and have a continuous short circuit protection. We offer the following types of this Recom series: RS12-243.3SZ, RS12-2405SZ, RS12-2412SZ, RS12-2415SZ and RS12-2424SZ.

  • single output
  • output: 12W
  • input voltage: 9 to 36V DC
  • ripple and noise3,3/5/12V: 50mVpp
  • ripple and noise 15/24V: 75mVpp
  • withstand voltage I/P-O/P: 3000V DC
  • maximal output voltage tolerance: ±1%
  • operating temperature: -40 to +105°C
  • dimensions: 21,8x12,1x9,6mm
  • weight: 8,5g
RS12-2412SZ, Recom DC/DC converters, 12W, SIL8 housing, RS12-Z series

RS12-2412SZ

235411 RS12-2412SZ RS12-2412SZ Recom DC/DC converter series RS12-Z. Converter modules in a SIL8 housing with 12W and an input voltage ratio of 4:1. These devices are suitable for direct PCB mounting and have a continuous short circuit protection. We offer the following types of this Recom series: RS12-243.3SZ, RS12-2405SZ, RS12-2412SZ, RS12-2415SZ and RS12-2424SZ. single output output: 12W input voltage: 9 to 36V DC ripple and noise3,3/5/12V: 50mVpp ripple and noise 15/24V: 75mVpp withstand voltage I/P-O/P: 3000V DC maximal output voltage tolerance: ±1% operating temperature: -40 to +105°C dimensions: 21,8x12,1x9,6mm weight: 8,5g

Specifications

manufacturer
Manufacturer's name RS12-2412SZ
Output voltage [V] 12
Efficiency [%] 88
Output current [mA] 1000
Data Sheet

Unit price

32,59 €

Stock: 22
Further delivery:
CW 29/2024
