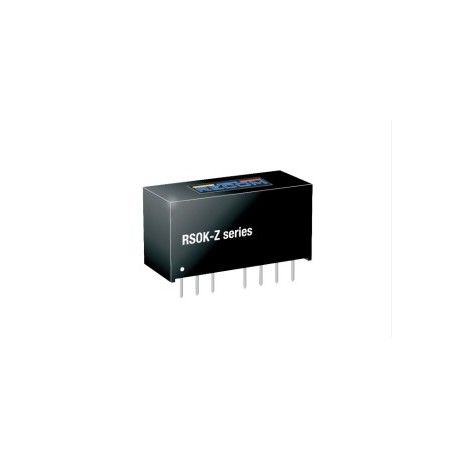

RSOK-2405SZ/H3

Recom DC/DC converter series RSOK-Z

DC/DC converter modules in a SIL8 housing with 1W and an ON/OFF control. These devices are suitable for PCB mounting and are protected against short circuit (continuous). They require no minimum load, have an input voltage ratio of 4:1 and comply with EN62368-1. We offer the type RSOK-2405SZ/H3 of this Recom series.

  • single output
  • output: 1W
  • output voltage tolerance: ±2%
  • maximal ripple and noise: 80mVpp
  • withstand voltage I/P-O/P: 3000V DC
  • operating temperature: -40 to +105°C
  • dimensions: 21,8x9,2x11,1mm
  • weight: 4,7g
RSOK-2405SZ/H3, Recom DC/DC converters, 1W, SIL8 housing, RSOK-Z series

RSOK-2405SZ/H3

242809 RSOK-2405SZ/H3 RSOK-2405SZ/H3 Recom DC/DC converter series RSOK-Z. DC/DC converter modules in a SIL8 housing with 1W and an ON/OFF control. These devices are suitable for PCB mounting and are protected against short circuit (continuous). They require no minimum load, have an input voltage ratio of 4:1 and comply with EN62368-1. We offer the type RSOK-2405SZ/H3 of this Recom series. single output output: 1W output voltage tolerance: ±2% maximal ripple and noise: 80mVpp withstand voltage I/P-O/P: 3000V DC operating temperature: -40 to +105°C dimensions: 21,8x9,2x11,1mm weight: 4,7g

Specifications

manufacturer
Manufacturer's name RSOK-2405SZ/H3
Input voltage [V] 9...36
Output voltage [V] 5
Output current [mA] 200
Efficiency [%] 75
Data Sheet

Unit price

8,39 €

Stock: 66
Further delivery:
CW 32/2024
