RTC2-0505SRW

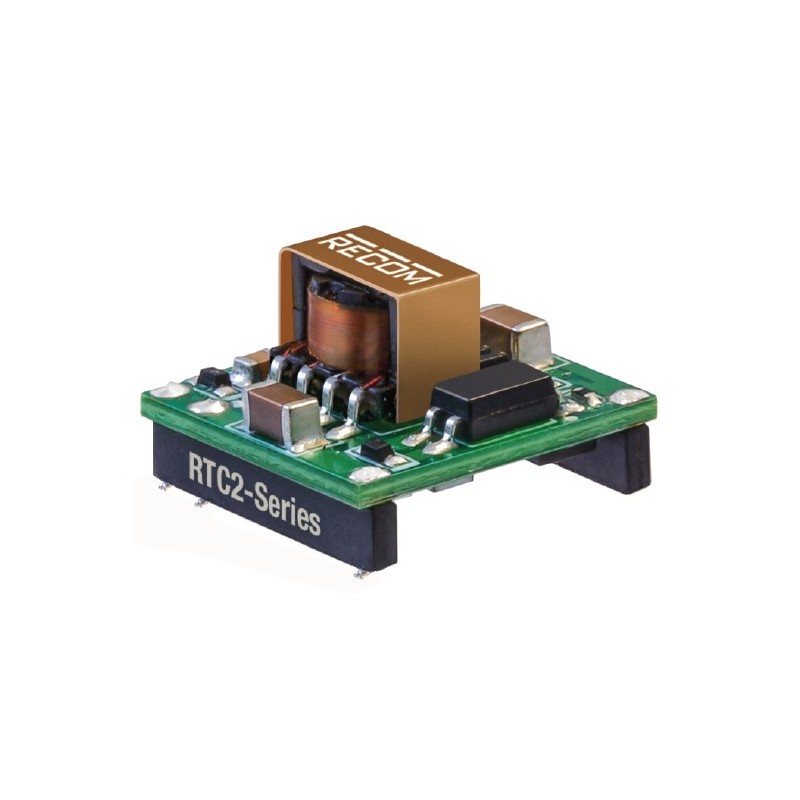

DC/DC converter modules by Recom

The modules possess a SMD housing and are suitable for direct PCB mounting. Their efficiency is up to 80% and their isolation voltage is 3kV DC. They are characterized by a regulated voltage and a continuous short circuit protection. We are offering the following types by Recom: RTC2-0505SRW and RTC2-2405SRW.

• voltage accuracy, max. (load 100%): ±2%
• ripple & noise, max.: 50mVpp
• operating temperature: -40 to +100°C

RTC2-series

RTC2-0505SRW

108983 RTC2-0505SRW RTC2-0505SRW DC/DC converter modules by Recom. The modules possess a SMD housing and are suitable for direct PCB mounting. Their efficiency is up to 80% and their isolation voltage is 3kV DC. They are characterized by a regulated voltage and a continuous short circuit protection. We are offering the following types by Recom: RTC2-0505SRW and RTC2-2405SRW.• voltage accuracy, max. (load 100%): ±2%• ripple & noise, max.: 50mVpp• operating temperature: -40 to +100°C

Specifications

manufacturer
Manufacturer's name RTC2-0505SRW
Input voltage [V] 4,5...9
Output voltage [V] 5
Output current range [mA] 400
Efficiency [%] 76
Data Sheet

Unit price

11,49 €

Stock: 117
Further delivery:
CW 38/2024
