RTC2-2405SRW

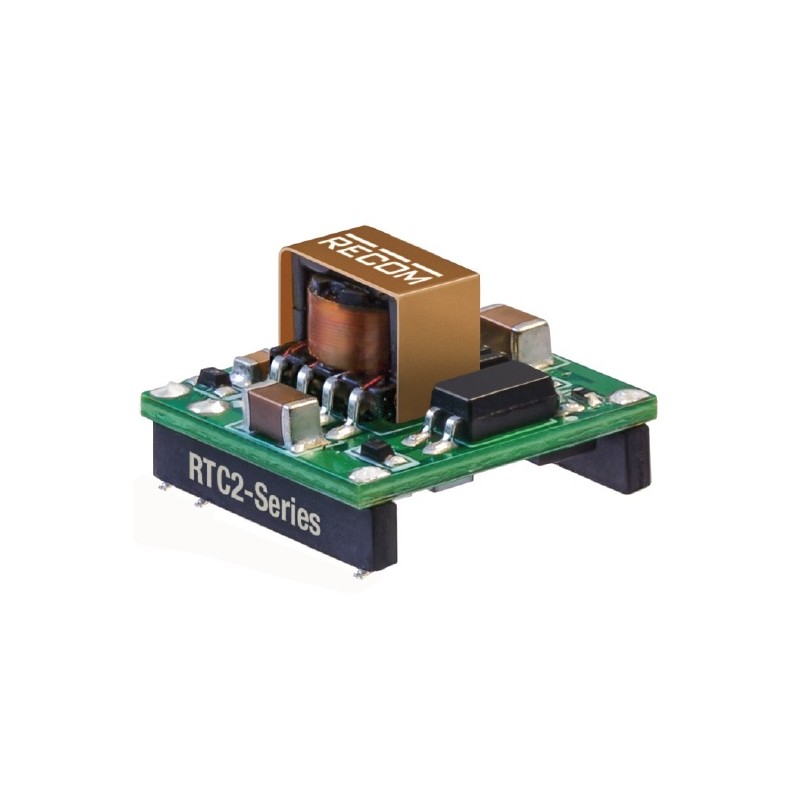

DC/DC converter modules by Recom

The modules possess a SMD housing and are suitable for direct PCB mounting. Their efficiency is up to 80% and their isolation voltage is 3kV DC. They are characterized by a regulated voltage and a continuous short circuit protection. We are offering the following types by Recom: RTC2-0505SRW and RTC2-2405SRW.

* output: 2 Watt
* single output
* input voltage ratio: 2:1
• voltage accuracy, max. (load 100%): ±2%
• ripple & noise, max.: 50mVpp
• operating temperature: -40 to +100°C

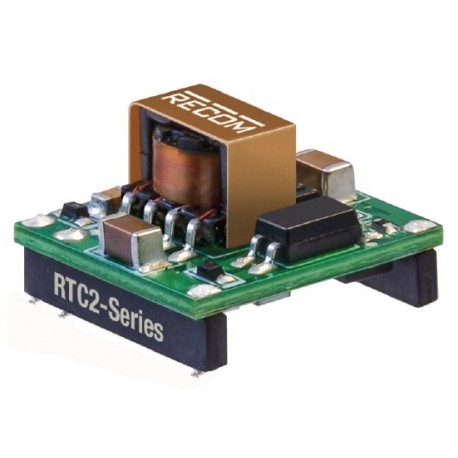

RTC2-series

RTC2-2405SRW

108984 RTC2-2405SRW RTC2-2405SRW DC/DC converter modules by Recom. The modules possess a SMD housing and are suitable for direct PCB mounting. Their efficiency is up to 80% and their isolation voltage is 3kV DC. They are characterized by a regulated voltage and a continuous short circuit protection. We are offering the following types by Recom: RTC2-0505SRW and RTC2-2405SRW.* output: 2 Watt* single output* input voltage ratio: 2:1• voltage accuracy, max. (load 100%): ±2%• ripple & noise, max.: 50mVpp• operating temperature: -40 to +100°C

Specifications

manufacturer
Manufacturer's name RTC2-2405SRW
Input voltage [V] 18...36
Output voltage [V] 5
Output current range [mA] 400
Efficiency [%] 80
Data Sheet

Unit price

11,49 €

Stock: 56
Further delivery:
CW 38/2024
