R12P21503D

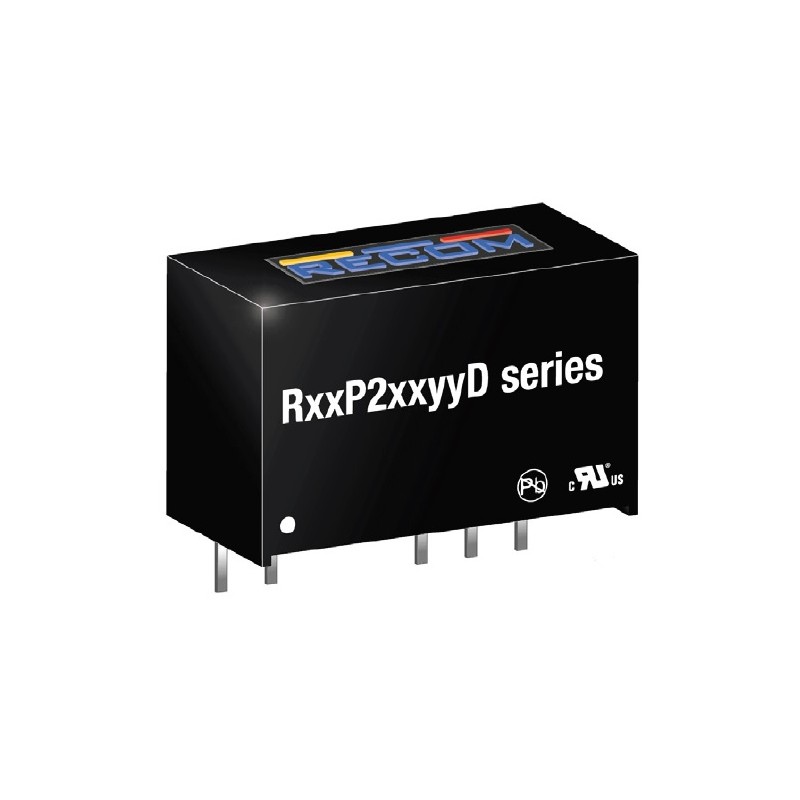

Recom DC/DC converter series RxxP2xxyy

Converter modules in a SIL7 housing with 2W, an efficiency of up to 82%, a low isolation capacitance of max. 10pF and a withstand voltage of 6,4kV DC. These devices have asymetric outputs +15/+3V for SiC driver applications as well as a pot-core transformer with seperated windings. We offer the following types of this Recom series: R05P22005D, R12P21503D, R12P22005D, R15P21503D, R15P22005D, R24P21503D and R24P22005D.

  • dual output
  • output: 2W
  • maximal output voltage tolerance: ±5% (at 100% load)
  • maximal ripple and noise: 200mVpp
  • operating temperature: -40 to +90°C
  • weight: 4,3g

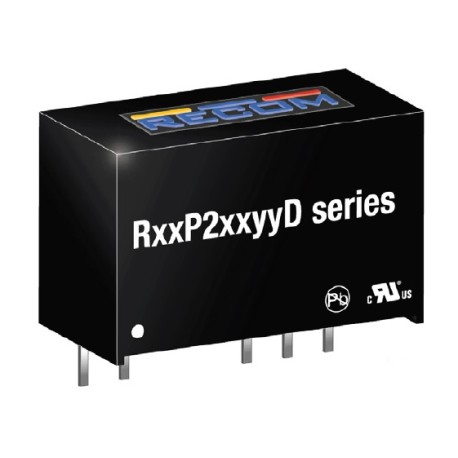

Recom RxxP2xxyyD series

R12P21503D

118094 R12P21503D R12P21503D Recom DC/DC converter series RxxP2xxyy . Converter modules in a SIL7 housing with 2W, an efficiency of up to 82%, a low isolation capacitance of max. 10pF and a withstand voltage of 6,4kV DC. These devices have asymetric outputs +15/+3V for SiC driver applications as well as a pot-core transformer with seperated windings. We offer the following types of this Recom series: R05P22005D, R12P21503D, R12P22005D, R15P21503D, R15P22005D, R24P21503D and R24P22005D. dual output output: 2W maximal output voltage tolerance: ±5% (at 100% load) maximal ripple and noise: 200mVpp operating temperature: -40 to +90°C weight: 4,3g

Specifications

manufacturer
Manufacturer's name R12P21503D
Input voltage [V] 12
Output voltage [V] +15/-3
Output current range [mA] +93/-185
Efficiency [%] 84
Data Sheet

Unit price

10,19 €

Stock: 136
Further delivery:
CW 28/2024
