IC 24 TH 8 MHz

Red Frequency quartz crystal series IC 24

  • quartz crystals in an HC 49/U-S housing
  • suitable for through-hole mounting
  • maximal shunt capacitance: 7pF
  • maximal drive level: 500µW
  • aging (25°C, 1. year): ±3ppm/year
  • wired

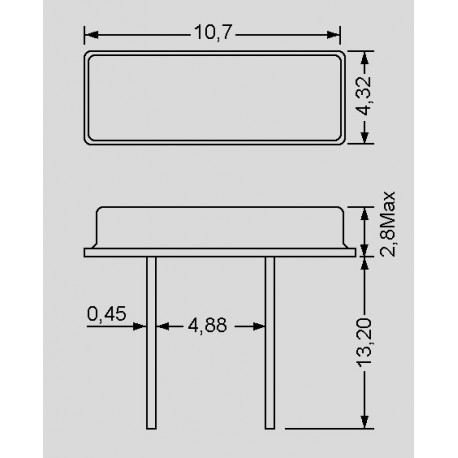

  • dimensions: 10,7x4,3x2,8mm
  • operating temperature: -20 to +70°C
IC 24 TH 8 MHz View larger

IC 24 TH 8 MHz

46045 IC 24 TH 8 MHz IC24008.000M20.0CE1B IC24008.000M20.0CE1B Red Frequency quartz crystal series IC 24. quartz crystals in an HC 49/U-S housing suitable for through-hole mounting maximal shunt capacitance: 7pF maximal drive level: 500µW aging (25°C, 1. year): ±3ppm/year wired dimensions: 10,7x4,3x2,8mm operating temperature: -20 to +70°C

Data sheet

manufacturer
manufacturer's name IC24008.000M20.0CE1B
case HC 49/U-S
frequency [MHz] 8
equivalent series resistance, max. [Ω] 80
capacity [pF] 20

Download

Data Sheet

0,57 €

Volume discounts

10 pcs. / 0,155 €

stock: 770
