IC 24 TH 25 MHz

Red Frequency quartz crystal series IC 24

  • quartz crystals in an HC 49/U-S housing
  • suitable for through-hole mounting
  • maximal shunt capacitance: 7pF
  • maximal drive level: 500µW
  • aging (25°C, 1. year): ±3ppm/year
  • wired

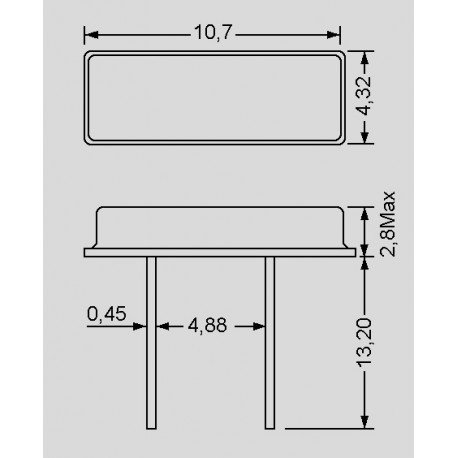

  • dimensions: 10,7x4,3x2,8mm
  • operating temperature: -20 to +70°C

IC 24 TH 25 MHz

46052 IC 24 TH 25 MHz IC24025.000M20.0DC1B IC24025.000M20.0DC1B Red Frequency quartz crystal series IC 24. quartz crystals in an HC 49/U-S housing suitable for through-hole mounting maximal shunt capacitance: 7pF maximal drive level: 500µW aging (25°C, 1. year): ±3ppm/year wired dimensions: 10,7x4,3x2,8mm operating temperature: -20 to +70°C

Specifications

manufacturer
Manufacturer's name IC24025.000M...
Case HC 49/U-S
Frequency [MHz] 25
Equivalent series resistance, max. [Ω] 30
Capacity [pF] 20
Data Sheet

Unit price

0,155 €

Stock: 620
Further delivery:
CW 22/2024

Minimum order quantity 10 units or
multiples of 10.
