ITS-LZ 1949 Z 12V

Red Magnetics electromagnet series ITS-LZ

Cylindrical magnets in a robust housing with a screw thread. These solenoids have a stranded wire connection (200mm) and are suitable use in for harsh environments. They are available as pull magnets without a return spring or as push magnets with a return spring. We offer various types of this Red Magnetics series.

  • rated voltage: 12 to 24V DC
  • rated current: 0,167 to 1,4A
  • rated power: 4 to 16,8W
  • holding force: 0,25 to 4,2kg

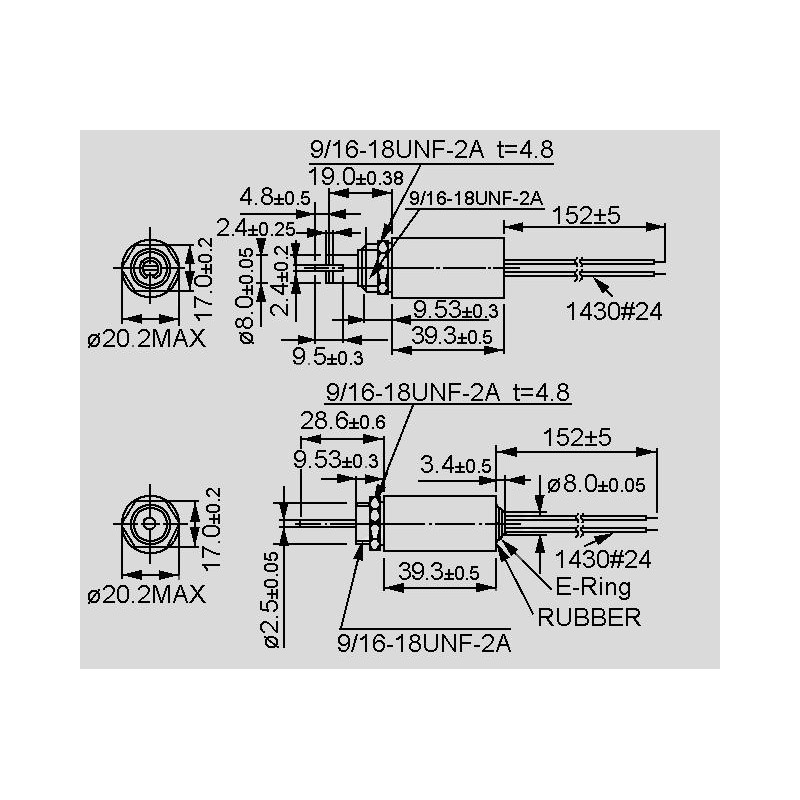

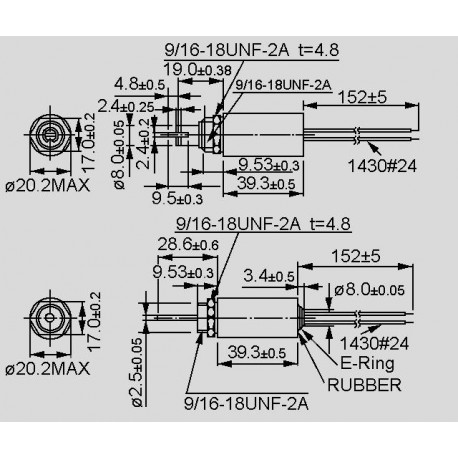

dimensions ITS-LZ 1949_

ITS-LZ 1949 Z 12V

32684 ITS-LZ 1949 Z 12V ITS-LZ-1949-Z-12VDC ITS-LZ-1949-Z-12VDC Red Magnetics electromagnet series ITS-LZ. Cylindrical magnets in a robust housing with a screw thread. These solenoids have a stranded wire connection (200mm) and are suitable use in for harsh environments. They are available as pull magnets without a return spring or as push magnets with a return spring. We offer various types of this Red Magnetics series. rated voltage: 12 to 24V DC rated current: 0,167 to 1,4A rated power: 4 to 16,8W holding force: 0,25 to 4,2kg

Specifications

manufacturer
Manufacturer's name ITS-LZ-1949-...
Design pulling...
Rated current [mA] 583
Weight anchor [g] 20
Ultimate power [kg] 11
Thread 0,562
Magnet weight [g] 82
Starting power [kg] 0,6
Holding force [kg] 1,1
Diameter [mm] 19
Nominal capacity [W] 7
Length [mm] 49
Data Sheet

Unit price

13,49 €

Stock: 14
Next incoming goods:
CW 07/2026
50 units

Further delivery:
CW 20/2026
