RM699BV-3011-85-1024

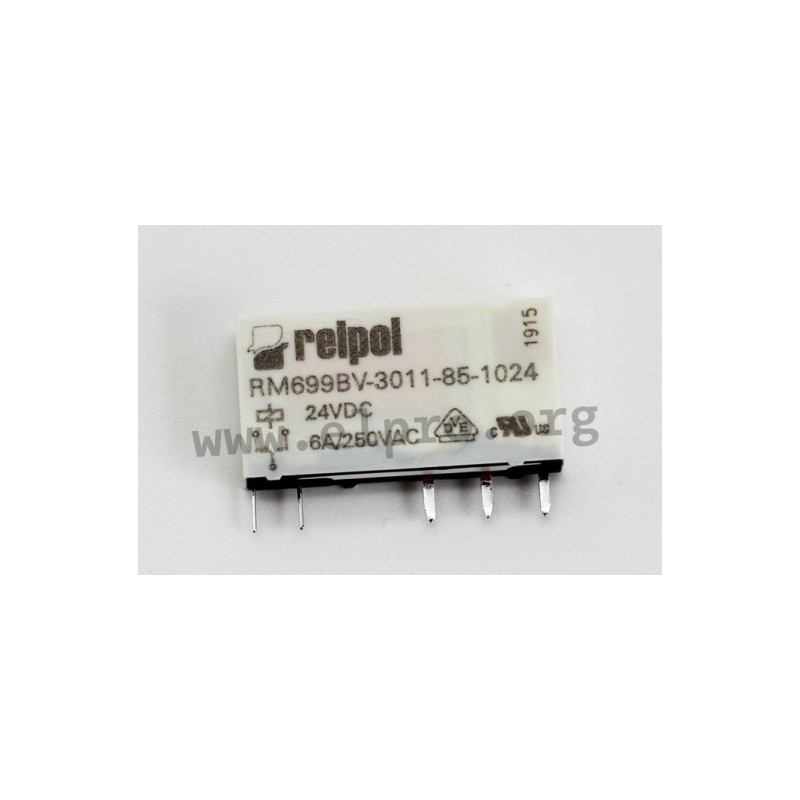

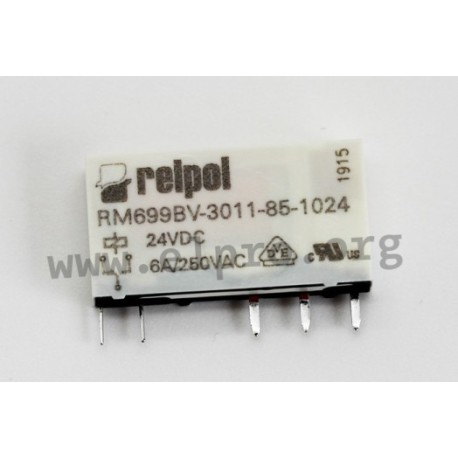

Relpol PCB relay series RM699B

Miniature relays with a low cover width (5mm) for direct PCB mounting (vertical) and with the contact form SPST (1 form C). These relays are in compliance with EN 60529 (IP67) and EN 61810-7 (RTIII). Furthermore, they are sealed for soldering and cleaning. We offer the types RM699BV-3011-85-1012 and RM699BV-3011-85-1024 with a switching current of 6A and the contact material AgSnO2 and the types RM699BV-3211-85-1012 and RM699BV-3211-85-1024 with a switching current of 0,05A and the contact material AgSnO2/Au (hard gold plated).

  • contact: SPST
  • minimal switching current RM699BV30_: 100mA
  • minimal switching current RM699BV32_: 10mA
  • maximal switching voltage RM699BV30_: 400V AC / 250V DC
  • maximal switching voltage RM699BV32_: 30V AC/ 36V DC
  • testing voltage coil/contact: 4000V AC
  • testing voltage contact/contact: 1000V AC
  • mechanical lifetime: 107 operations
  • electrical lifetime (AC1): 3 x 104 operations
  • operating temperature: -40 to +85°C

RM699BV-3011-85-1024

113603 RM699BV-3011-85-1024 RM699BV-3011-85-1024 Relpol PCB relay series RM699B. Miniature relays with a low cover width (5mm) for direct PCB mounting (vertical) and with the contact form SPST (1 form C). These relays are in compliance with EN 60529 (IP67) and EN 61810-7 (RTIII). Furthermore, they are sealed for soldering and cleaning. We offer the types RM699BV-3011-85-1012 and RM699BV-3011-85-1024 with a switching current of 6A and the contact material AgSnO2 and the types RM699BV-3211-85-1012 and RM699BV-3211-85-1024 with a switching current of 0,05A and the contact material AgSnO2/Au (hard gold plated). contact: SPSTminimal switching current RM699BV30_: 100mAminimal switching current RM699BV32_: 10mAmaximal switching voltage RM699BV30_: 400V AC / 250V DCmaximal switching voltage RM699BV32_: 30V AC/ 36V DCtesting voltage coil/contact: 4000V ACtesting voltage contact/contact: 1000V ACmechanical lifetime: 107 operationselectrical lifetime (AC1): 3 x 104 operationsoperating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name RM699BV-3011...
Coil resistance [Ω] 3390
Rated current [A] 6
Nominal voltage [V] 24
Response voltage [V] 18
Nominal capacity [mW] 170
Data Sheet

Unit price

2,69 €

Stock: 1455
Further delivery:
CW 46/2024

Minimum order quantity 5 units or
multiples of 5.
