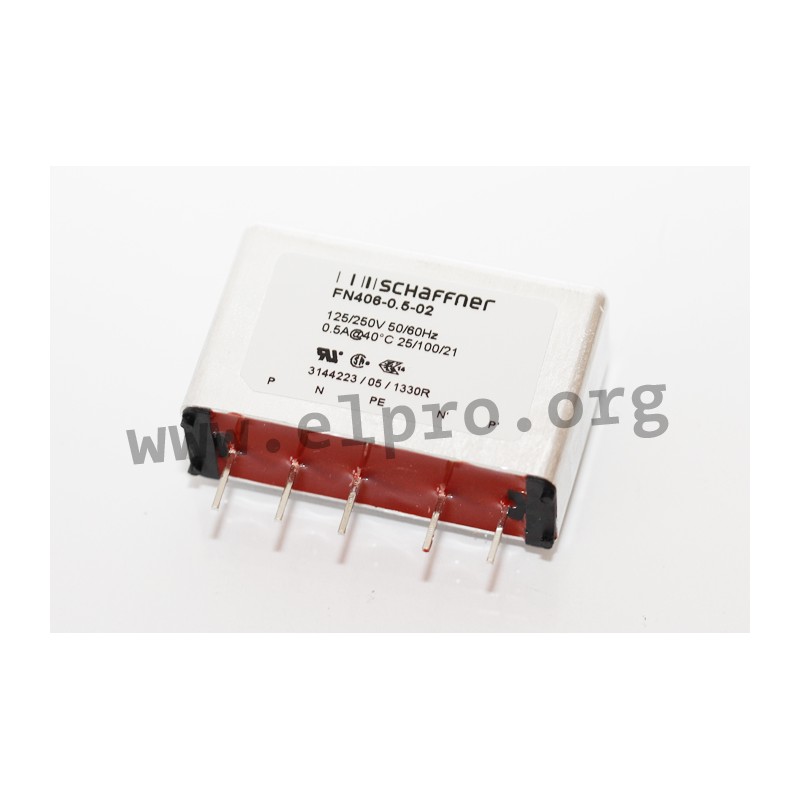

FN406-0.5-02

Schaffner PCB filter series FN406 / FN406B

Single-phase RFI filters in an aluminium housing with a very low profile. These line filters are suitable for PCB mounting and comply with EN60939. We offer the following types of this Schaffner series: FN406-0.5-02, FN406-1-02, FN406-3-02, FN406-6-02, FN406-8.4-02, FN406B-0.5-02, FN406B-1-02, FN406B-3-02, FN406B-6-02, and FN406B-8.4-02.

  • rated current: 0,5 to 8,4A
  • maximal leakage current: 373µA
  • dielectric strength line/ground: 2kV AC
  • dielectric strength line/line: 760V AC
  • operating temperature: -25 to +100°C
  • FN406B_ is suitable for application in medical settings (without Y2 capacitor)

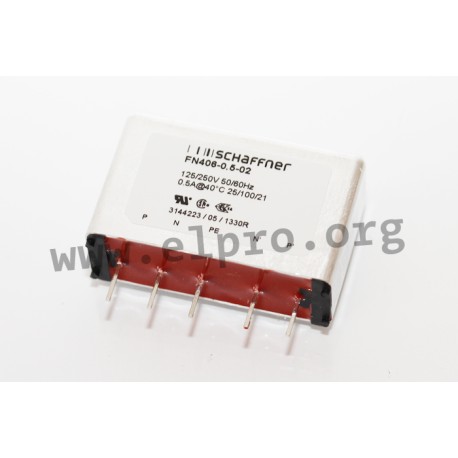

FN406-0.5-02, Schaffner PCB filters, aluminium housing, FN 406 / FN 406B series

FN406-0.5-02

43858 FN406-0.5-02 FN406-0.5-02 Schaffner PCB filter series FN406 / FN406B. Single-phase RFI filters in an aluminium housing with a very low profile. These line filters are suitable for PCB mounting and comply with EN60939. We offer the following types of this Schaffner series: FN406-0.5-02, FN406-1-02, FN406-3-02, FN406-6-02, FN406-8.4-02, FN406B-0.5-02, FN406B-1-02, FN406B-3-02, FN406B-6-02, and FN406B-8.4-02. rated current: 0,5 to 8,4A maximal leakage current: 373µA dielectric strength line/ground: 2kV AC dielectric strength line/line: 760V AC operating temperature: -25 to +100°C FN406B_ is suitable for application in medical settings (without Y2 capacitor)

Specifications

manufacturer
Manufacturer's name FN406-0.5-02
CX [nF] 100
inductance [mH] 24
CY [nF] 2,2
Leakage current [µA] 373
Rated current [A] 0,5
Data Sheet

Unit price

10,09 €

Stock: 135
Further delivery:
CW 37/2024
