FN9290B-10-06

Schaffner RFI filter series FN 9290 / FN 9290B

Radio frequency interference filters in a metal case with an IEC plug, a faston or spring cage terminal (6.3x0.8mm), a dual fuse holder (5x20mm fuses) and a 2-pole rocker switch. These filters have good conducted attenuation performance and flanges for front or rear mounting. We offer the following types of this Schaffner series: FN9290-1-06, FN9290-2-06, FN9290-4-06, FN9290-6-06, FN9290-10-06, FN9290B-1-06, FN9290B-2-06, FN9290B-4-06, FN9290B-6-06, and FN9290B-10-06.

  • maximal continuous operating voltage: 250V AC (50/60Hz)
  • dielectric strength line to ground (2sec): 2kV AC
  • dieelectric strength line to ground B-Type (2sec): 2,5kV AC
  • dielectric strength line to neutral (2sec): 0,76kV AC
  • temperature range: -25 to +85°C
  • rocker switch ratings: 10A (4A), 250V AC
  • inrush current: 82A
  • FN9290B_ is suitable for application in medical settings

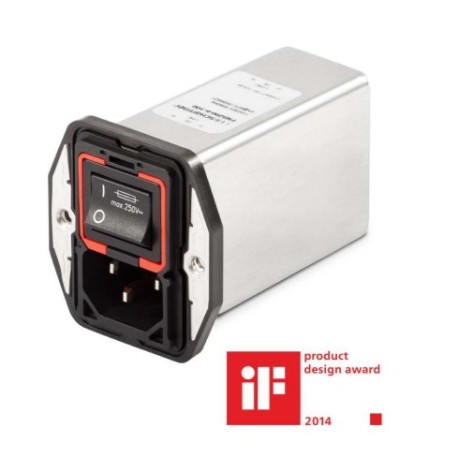

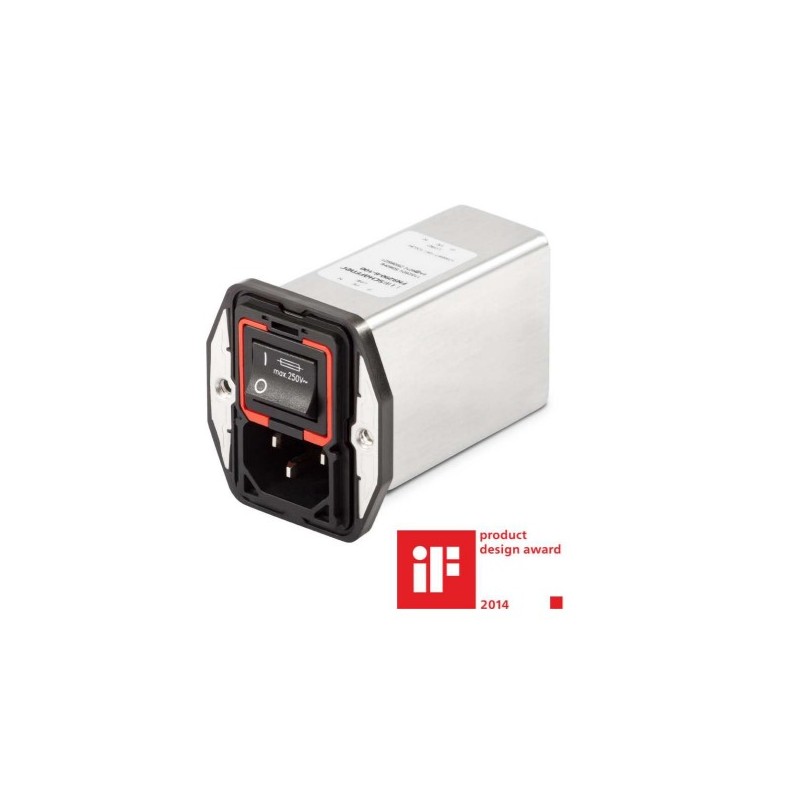

FN9290B-10-06, Schaffner RFI filters, with IEC plug, dual fuse holder and 2-pole switch, FN 9290 / FN9290B series

FN9290B-10-06

246317 FN9290B-10-06 FN9290B-10-06 Schaffner RFI filter series FN 9290 / FN 9290B. Radio frequency interference filters in a metal case with an IEC plug, a faston or spring cage terminal (6.3x0.8mm), a dual fuse holder (5x20mm fuses) and a 2-pole rocker switch. These filters have good conducted attenuation performance and flanges for front or rear mounting. We offer the following types of this Schaffner series: FN9290-1-06, FN9290-2-06, FN9290-4-06, FN9290-6-06, FN9290-10-06, FN9290B-1-06, FN9290B-2-06, FN9290B-4-06, FN9290B-6-06, and FN9290B-10-06. maximal continuous operating voltage: 250V AC (50/60Hz) dielectric strength line to ground (2sec): 2kV AC dieelectric strength line to ground B-Type (2sec): 2,5kV AC dielectric strength line to neutral (2sec): 0,76kV AC temperature range: -25 to +85°C rocker switch ratings: 10A (4A), 250V AC inrush current: 82A FN9290B_ is suitable for application in medical settings

Specifications

manufacturer
Manufacturer's name FN9290B-10-06
Inductance 2 [mH] 0,32
CX [nF] 220
inductance [mH] 0,32
Rated current [A] 10
Leakage current [mA] 0,00
Data Sheet

Unit price

37,69 €

Stock: 0
Further delivery:
CW 37/2024

Minimum order quantity 40 units or
multiples of 40.
