RN202-0.3-02-12M

Schaffner choke series RN

Current-compensated chokes in a fully potted housing with an excellent thermal behaviour and a high saturation resistance. These common mode chokes are suitable for PCB mounting and offer the option of dual-choke configurations. They have a compact design and comply with UL 1283 as well as EN60938-1. We offer various types of this Schaffner series.

  • rated current: 0,3 to 6A
  • operating voltage: 300V AC
  • operating frequency: DC to 400Hz
  • operating temperature: -40 to +100°C

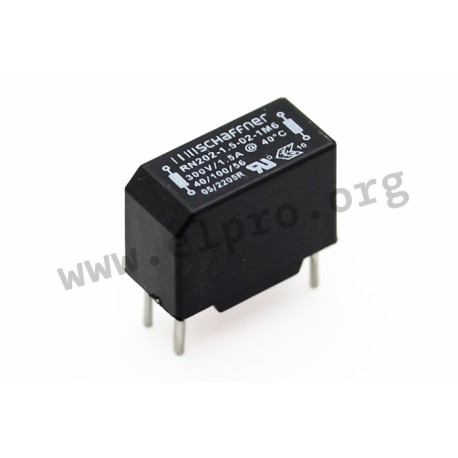

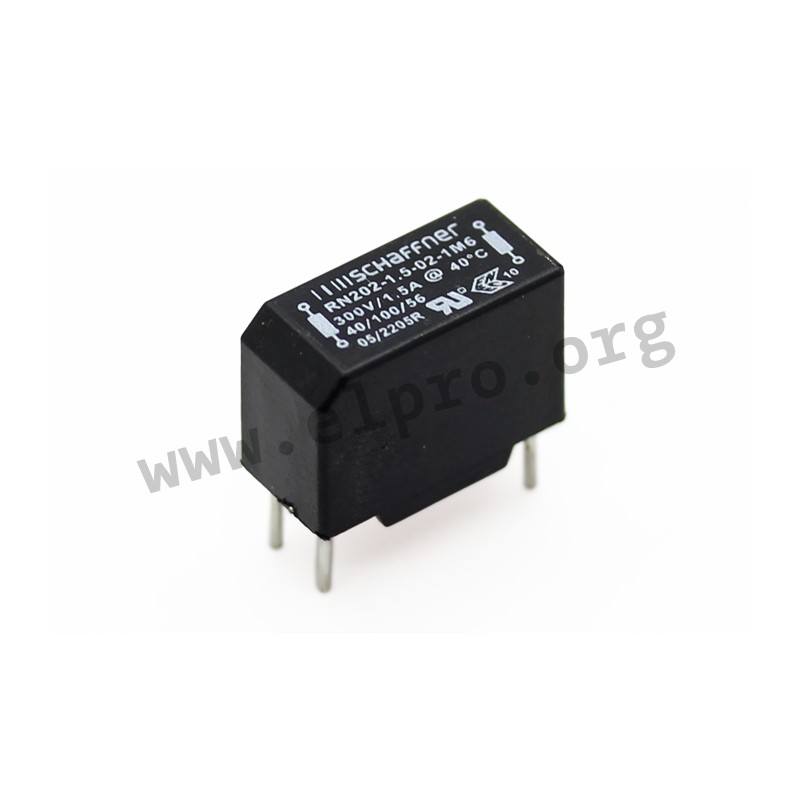

RN202-0.3-02-12M, Schaffner current-compensated chokes, fully potted, vertical, RN series

RN202-0.3-02-12M

122414 RN202-0.3-02-12M RN202-0.3-02-12M Schaffner choke series RN. Current-compensated chokes in a fully potted housing with an excellent thermal behaviour and a high saturation resistance. These common mode chokes are suitable for PCB mounting and offer the option of dual-choke configurations. They have a compact design and comply with UL 1283 as well as EN60938-1. We offer various types of this Schaffner series. rated current: 0,3 to 6A operating voltage: 300V AC operating frequency: DC to 400Hz operating temperature: -40 to +100°C

Specifications

manufacturer
Manufacturer's name RN202-0.3-02-12M
inductance [mH] 12
Rated current [A] 0,3
Data Sheet

Unit price

1,29 €

Stock: 360
Further delivery:
CW 35/2024

Minimum order quantity 5 units or
multiples of 5.
