3-135-552

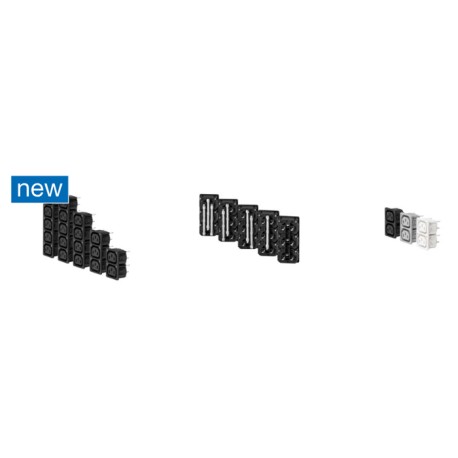

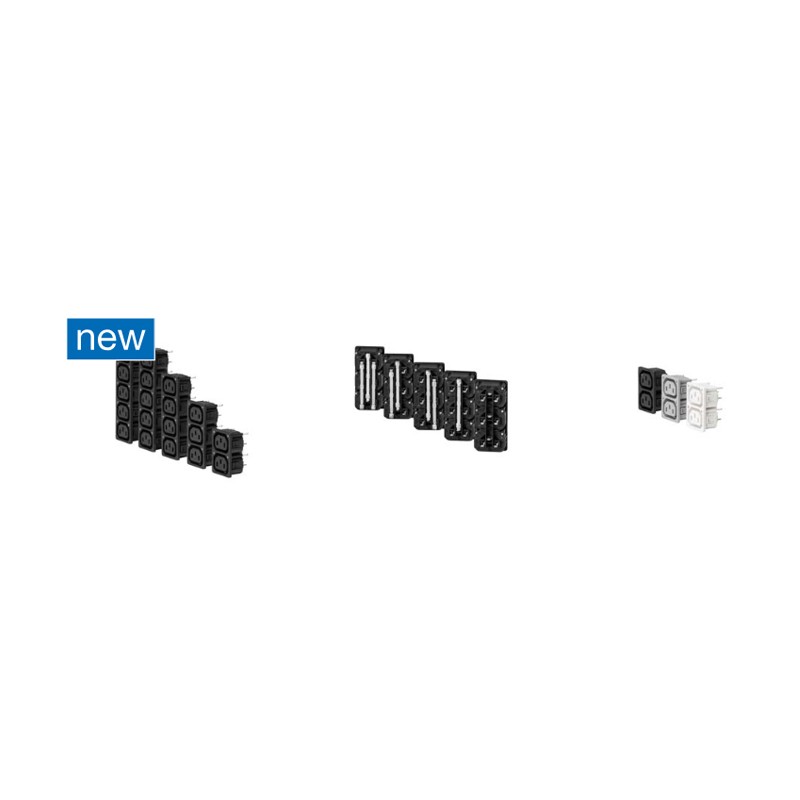

Schurter IEC appliance outlet series 4750

IEC appliance outlets (IP20) made of thermoplastic (UL94V.0) with front snap-in mounting (1,2/1,5/1,7mm), a pre-mounted light guide for status indication and a pin temperature of up to 70°C. These devices have up to 7 IEC outlets (type F) as well as PCB, solder or blade terminals (4,8/6,3x0,8mm). They are suitable for protection class I devices, comply with IEC 61140 and have a cord retention for cordsets with Twylock, V-Lock or P-Lock. We offer various types of this Schurter series.

  • pin temperature: 70°C
  • rated current: 10/15A
  • rated voltage: 250V AC
  • dielectric strength line/line: >2kV AC
  • dielectric strength line/ground: >2kV AC
  • operating temperature: -25 to +70°C
3-135-552, Schurter IEC appliance outlets, 70°C, 4750 series

3-135-552

242950 3-135-552 3-135-552 Schurter IEC appliance outlet series 4750. IEC appliance outlets (IP20) made of thermoplastic (UL94V.0) with front snap-in mounting (1,2/1,5/1,7mm), a pre-mounted light guide for status indication and a pin temperature of up to 70°C. These devices have up to 7 IEC outlets (type F) as well as PCB, solder or blade terminals (4,8/6,3x0,8mm). They are suitable for protection class I devices, comply with IEC 61140 and have a cord retention for cordsets with Twylock, V-Lock or P-Lock. We offer various types of this Schurter series. pin temperature: 70°C rated current: 10/15A rated voltage: 250V AC dielectric strength line/line: >2kV AC dielectric strength line/ground: >2kV AC operating temperature: -25 to +70°C

Specifications

manufacturer
Manufacturer's name 3-135-552
Colour black
Number of outputs 6
Data Sheet

Unit price

6,49 €

Stock: 40
Further delivery:
CW 52/2024

Minimum order quantity 10 units or
multiples of 10.
