5130.0001

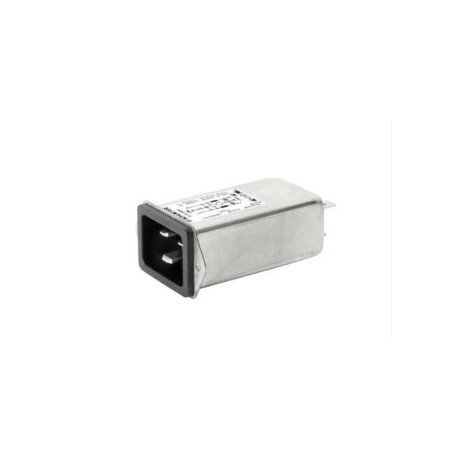

Schurter RFI filter series 5130

RFI filters in a metal housing with an IEC plug (C20), protection class I and a 6,3x0,8mm faston connector. These line filters have screw terminals and a good attenuation. We offer the type 5130.0000 and 5130.0001 of this Schurter series.

  • rated current: 16A
  • dielectric strength line/earth: >2,7kV DC
  • dielectric strength line/neutral: >1,7kV DC
  • operating temperature: -25 to +85°C
5130.0001, Schurter RFI filters, with IEC plug and faston connector, 5130 series

5130.0001

256714 5130.0001 5130.0001 Schurter RFI filter series 5130. RFI filters in a metal housing with an IEC plug (C20), protection class I and a 6,3x0,8mm faston connector. These line filters have screw terminals and a good attenuation. We offer the type 5130.0000 and 5130.0001 of this Schurter series. rated current: 16A dielectric strength line/earth: >2,7kV DC dielectric strength line/neutral: >1,7kV DC operating temperature: -25 to +85°C

Specifications

manufacturer
Manufacturer's name 5130.0001
Inductance [µH] 2x0,3
CX [µF] 0,1
Leakage current [mA] 0,5
CY [pF] 2200
Data Sheet

Unit price

15,49 €

Stock: 0
Further delivery:
CW 23/2026
