3-108-854

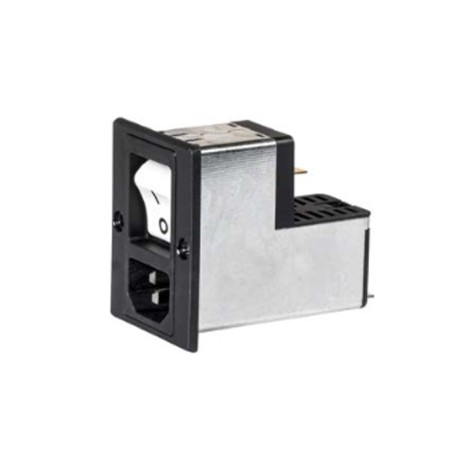

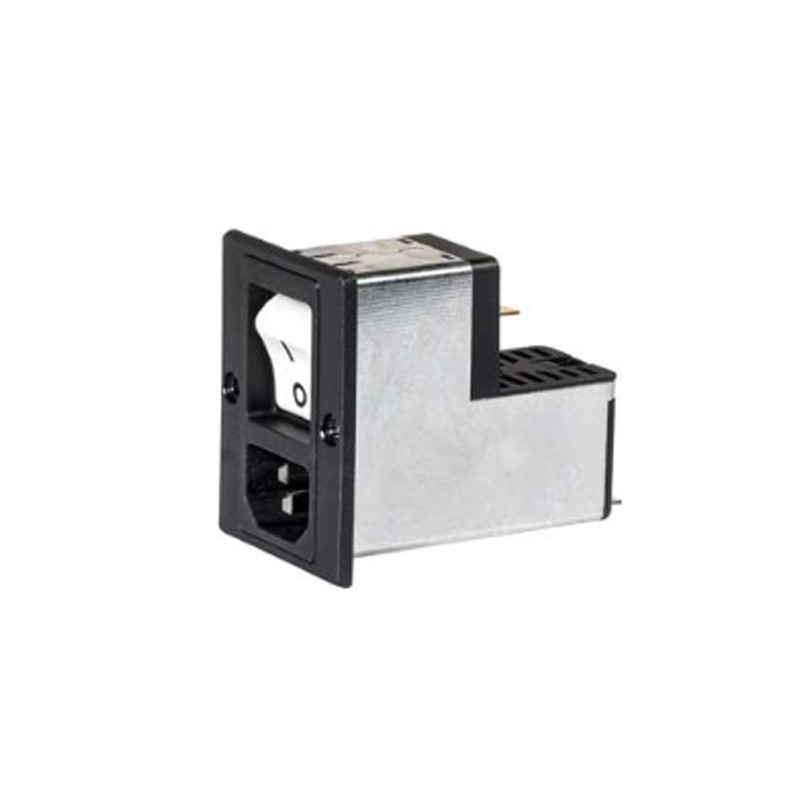

Schurter RFI filter series DG12

2-pole RFI filters in a metal housing with an IEC plug, protection class I and a line switch. These line filters are suitable for screw mounting (front face) and have 6,3x0,8mm tab terminals. We offer the following types of this Schurter series: 3-108-854, 3-109-557, 3-109-559, 3-109-560, 3-109-561, 3-109-572 and 3-109-573.

  • rated current: 1 to 15A
  • rated voltage: 250V AC
  • dielectric strength line/ground: >2,7kV DC
  • dielectric strength line/line: >1,7kV DC
  • operating temperature: -25 to +60°C

3-108-854

3-108-854

116688 3-108-854 3-108-854 Schurter RFI filter series DG12. 2-pole RFI filters in a metal housing with an IEC plug, protection class I and a line switch. These line filters are suitable for screw mounting (front face) and have 6,3x0,8mm tab terminals. We offer the following types of this Schurter series: 3-108-854, 3-109-557, 3-109-559, 3-109-560, 3-109-561, 3-109-572 and 3-109-573. rated current: 1 to 15A rated voltage: 250V AC dielectric strength line/ground: >2,7kV DC dielectric strength line/line: >1,7kV DC operating temperature: -25 to +60°C

Specifications

manufacturer
Manufacturer's name 3-108-854
Rocker black
Rated current [A] 1
Data Sheet

Unit price

36,09 €

Stock: 20
Further delivery:
CW 08/2025
