FPG 3

for microfuses

• solder/quick connect terminals 4.8x0.5mm
• sealed from the rear
• suitable for equipment with protection classes I and II according to IEC 60536
• rated voltage
VDE: 250V AC
UL/CSA: 400V AC
• rated current (VDE / UL/CSA): 10A / 16A
• rated power acceptance (16A @ 23°C): 2.5W
• temperature range: -40...+85°C
• solderability: 350°C / 2s
• shock safe category: PC2
• slotted for screwdriver
• IP40

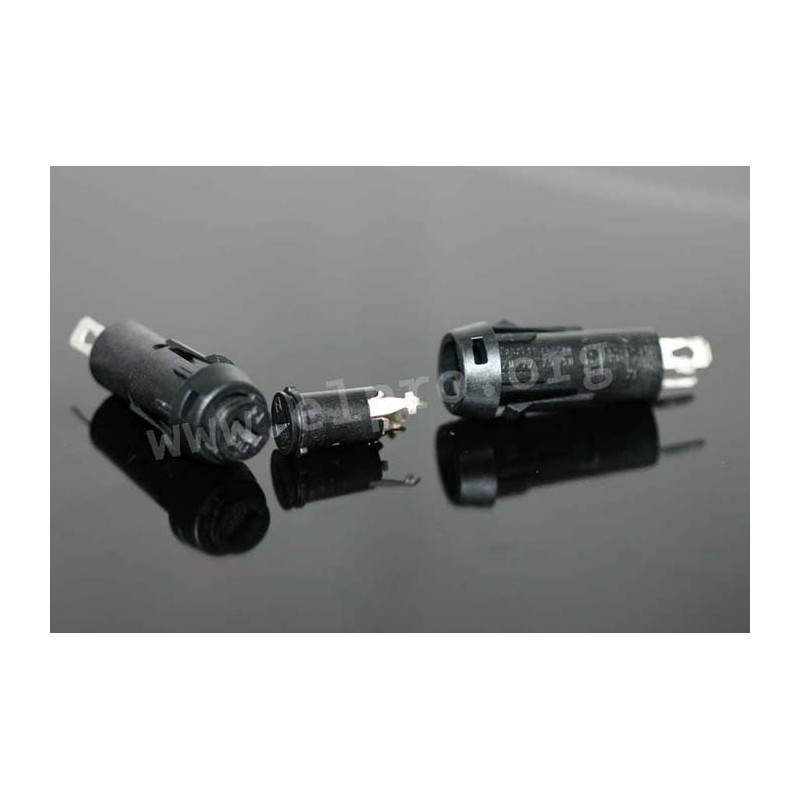

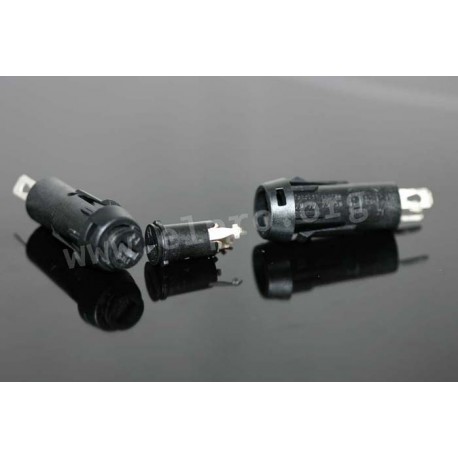

Schurter series FPG 3 View larger

FPG 3

27545 FPG 3 3101.0031 3101.0031 for microfuses. • solder/quick connect terminals 4.8x0.5mm• sealed from the rear• suitable for equipment with protection classes I and II according to IEC 60536• rated voltageVDE: 250V ACUL/CSA: 400V AC• rated current (VDE / UL/CSA): 10A / 16A• rated power acceptance (16A @ 23°C): 2.5W• temperature range: -40...+85°C• solderability: 350°C / 2s• shock safe category: PC2• slotted for screwdriver• IP40

Data sheet

manufacturer
manufacturer's name 3101.0031

Download

Data Sheet

4,69 €

Volume discounts

10 pcs. / 1,26 €

stock: 178
