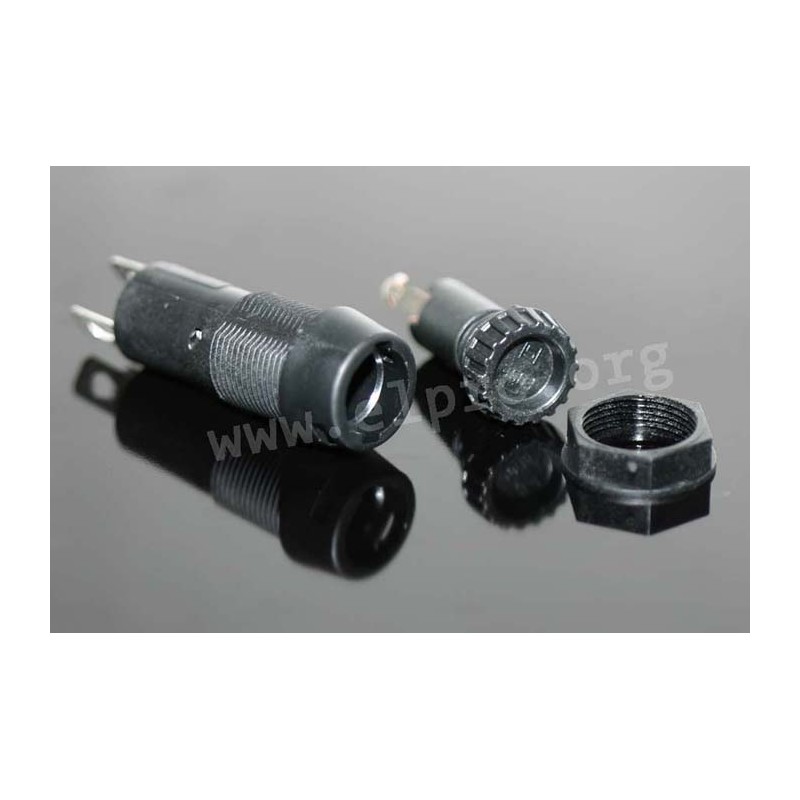

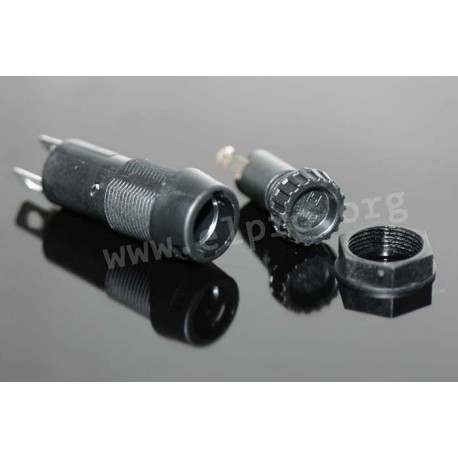

FPG 1 Fingergrip

for microfuses

• solder/quick connect terminals 4.8x0.5mm
• sealed from the rear
• suitable for equipment with protection classes I and II according to IEC 60536
• rated voltage
VDE: 250V AC
UL/CSA: 400V AC
• rated current (VDE / UL/CSA): 10A / 16A
• rated power acceptance (16A @ 23°C): 2.5W
• temperature range: -40...+85°C
• solderability: 350°C / 2s
• shock safe category: PC2
• fingergrip to open by hand
• IP40

FPG 1 Fingergrip

27551 FPG 1 Fingergrip 3101.0015 3101.0015 for microfuses. • solder/quick connect terminals 4.8x0.5mm• sealed from the rear• suitable for equipment with protection classes I and II according to IEC 60536• rated voltageVDE: 250V ACUL/CSA: 400V AC• rated current (VDE / UL/CSA): 10A / 16A• rated power acceptance (16A @ 23°C): 2.5W• temperature range: -40...+85°C• solderability: 350°C / 2s• shock safe category: PC2• fingergrip to open by hand• IP40

Specifications

manufacturer
Manufacturer's name 3101.0015
Data Sheet

Unit price

1,40 €

Stock: 270
Further delivery:
CW 26/2024

Minimum order quantity 10 units or
multiples of 10.
