0034.1520

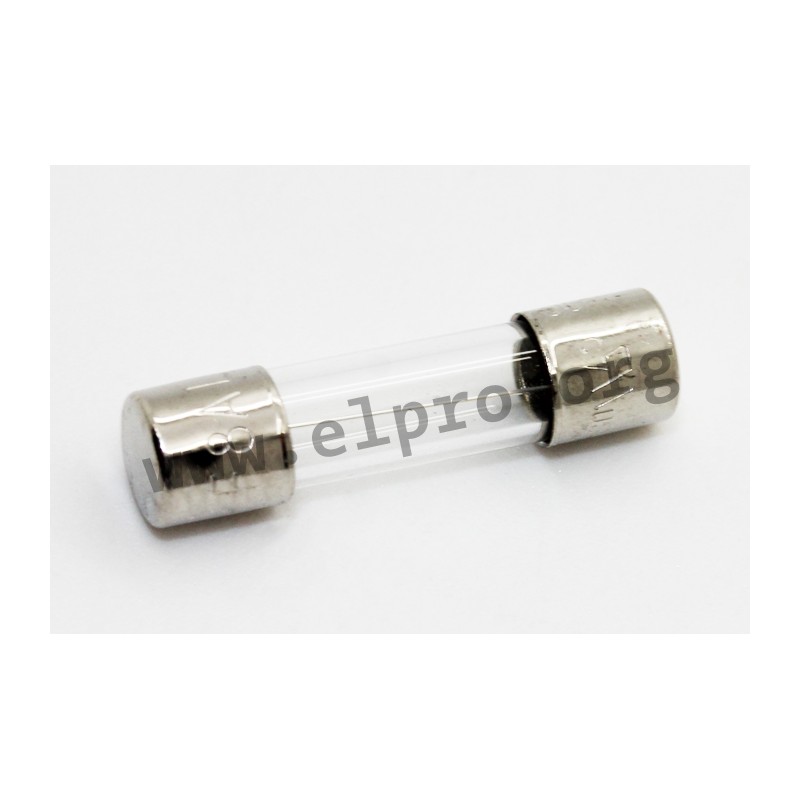

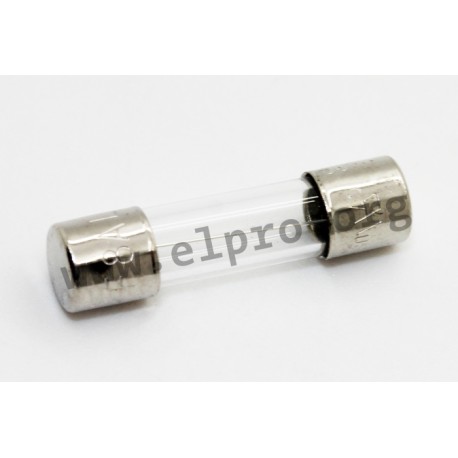

Schurter fuse link series FSF 5x20

  • fast acting (L) fuse links in a compact size (5x20mm)
  • comply with IEC60127-2
  • with a breaking capacity of 35 to 100A
  • suitable for primary protection
  • tube is made of glass and end caps are made of nickel-plated copper alloy
  • rated voltage: 250V AC

0034.1520

235095 0034.1520 0034.1520 Schurter fuse link series FSF 5x20. fast acting (L) fuse links in a compact size (5x20mm) comply with IEC60127-2 with a breaking capacity of 35 to 100A suitable for primary protection tube is made of glass and end caps are made of nickel-plated copper alloy rated voltage: 250V AC

Specifications

manufacturer
Manufacturer's name 0034.1520
Nominal voltage [V AC] 250
Voltage drop, max. [mV] 170
Melting integral [A²s] 9,19
Rated current [A] 2,5
Data Sheet

Unit price

0,154 €

Stock: 220
Further delivery:
CW 49/2024

Minimum order quantity 10 units or
multiples of 10.
