0034.3126

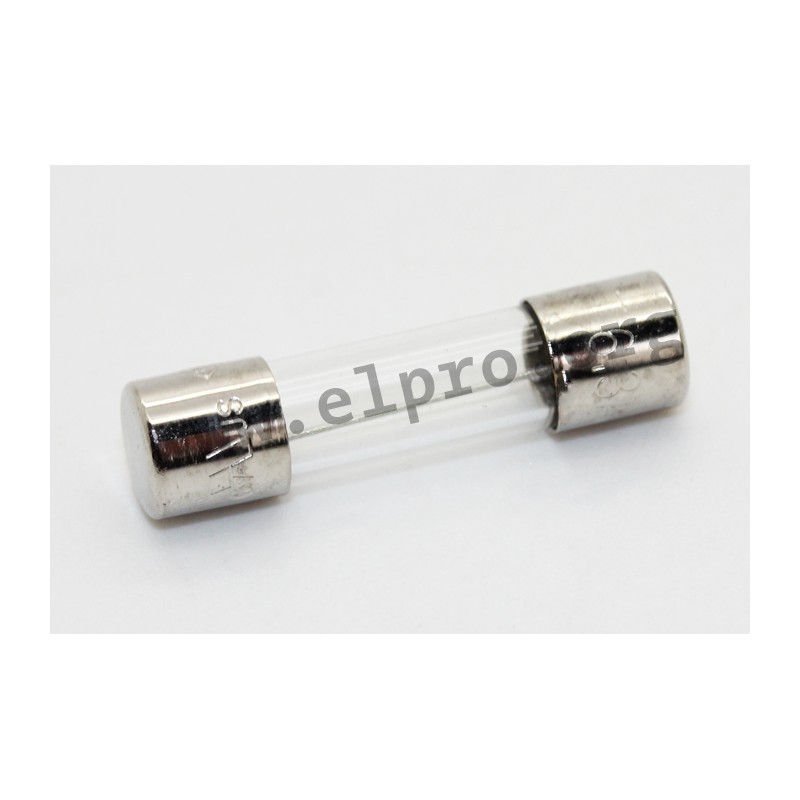

Schurter fuse link series FST 5x20

Fuse links in a 5x20mm housing with nickel-plated end caps made of copper alloy. These fuses have a time lag characteristic and a low breaking capacity. They are suitable for puls-shaped continuous currents as well as for use as primary protection in appliances and comply with IEC60127-2. We offer various types of this Schurter series.

  • rated voltage: 250V AC
  • rated current: 0,05 to 20A
  • characteristic: time lag
  • breaking capacity: 35 to 200A
  • housing: 5x20mm

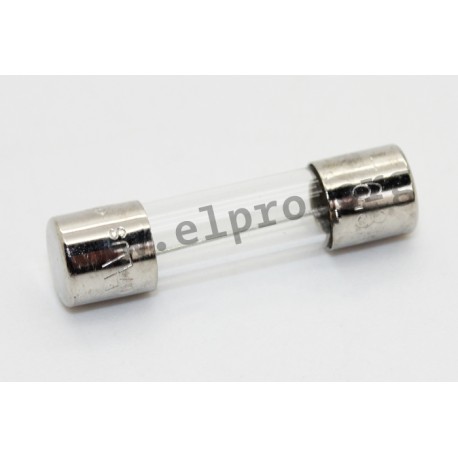

0034.3126, Schurter fuse links, 5x20mm, time lag, 250V, FST 5x20 series

0034.3126

235142 0034.3126 0034.3126 Schurter fuse link series FST 5x20. Fuse links in a 5x20mm housing with nickel-plated end caps made of copper alloy. These fuses have a time lag characteristic and a low breaking capacity. They are suitable for puls-shaped continuous currents as well as for use as primary protection in appliances and comply with IEC60127-2. We offer various types of this Schurter series. rated voltage: 250V AC rated current: 0,05 to 20A characteristic: time lag breaking capacity: 35 to 200A housing: 5x20mm

Specifications

manufacturer
Manufacturer's name 0034.3126
Nominal voltage [V AC] 250
Voltage drop, max. [mV] 100
Melting integral [A²s] 275
Rated current [A] 8
Data Sheet

Unit price

0,182 €

Stock: 908
Further delivery:
CW 52/2024

Minimum order quantity 1 to 8 units or multiples of 10 plus 0 to 8 .
