0034.6617

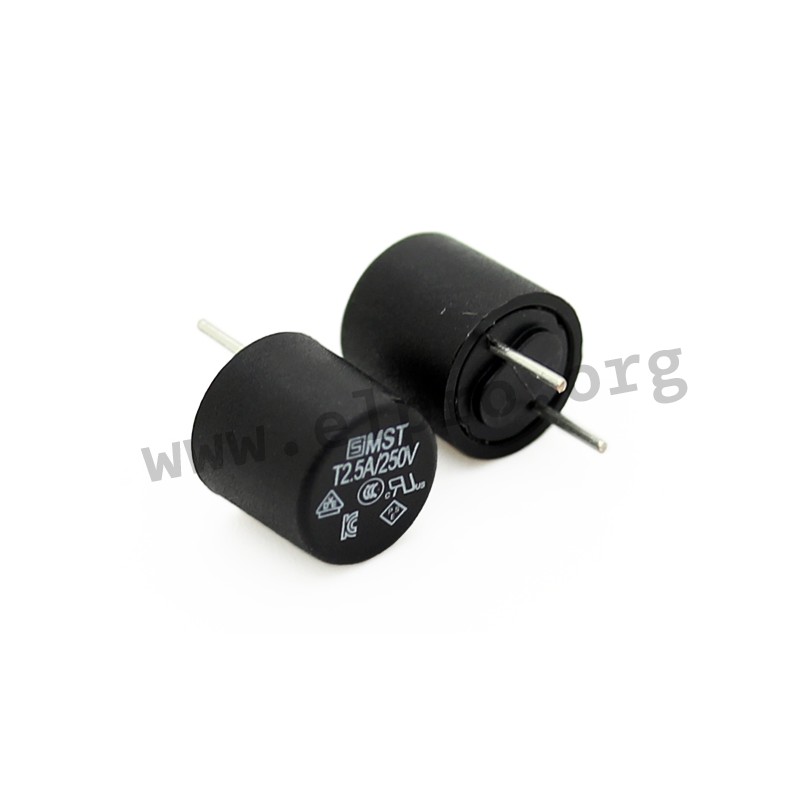

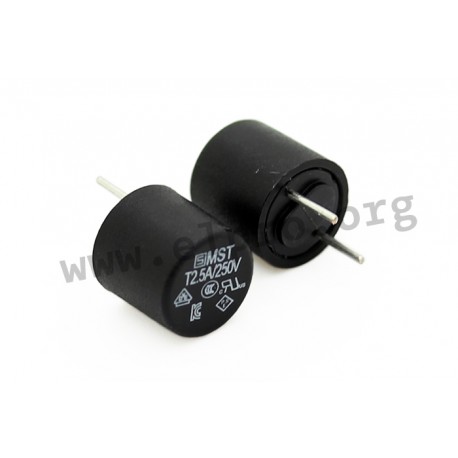

Schurter fuse series MST250

  • time lag radial type miniature fuse links (Ø8,5mm)
  • housing made of thermoplastic (UL94V-0)
  • with short (0034.66_ / 4,3mm) and long (0034.67_ / 18,8mm) tinned copper terminals
  • can be soldered or plugged in
  • wire diameter: 0,64mm
  • rated voltage: 250V AC / 63V DC
  • bulk

0034.6617

234939 0034.6617 0034.6617 Schurter fuse series MST250. time lag radial type miniature fuse links (Ø8,5mm) housing made of thermoplastic (UL94V-0) with short (0034.66_ / 4,3mm) and long (0034.67_ / 18,8mm) tinned copper terminals can be soldered or plugged in wire diameter: 0,64mm rated voltage: 250V AC / 63V DC bulk

Specifications

manufacturer
Manufacturer's name 0034.6617
Voltage drop, max. [mV] 120
Melting integral [A²s] 30
Rated current [A] 1,6
Power dissipation [mW] 730
Data Sheet

Unit price

0,251 €

Stock: 540
Further delivery:
CW 40/2024

Minimum order quantity 10 units or
multiples of 10.
