OGD SMD

SMD fuse holders

• For SMD assembly
* fuse block accepts 5x20mm and 6.3x32mm fuse links
* low profile fuse block with insulation walls
* special clips-ends prevent axial fuse-link movement
* rated voltage
VDE: 500V AC
UL/CSA: 600V AC/DC
* rated current (VDE / UL/CSA): 10A / 16A
* rated power acceptance (10A @ 23°C): 4W
* temperature range: -40...+85°C
* solderability: 245°C / 3s
* protection class: IP00 / IP20

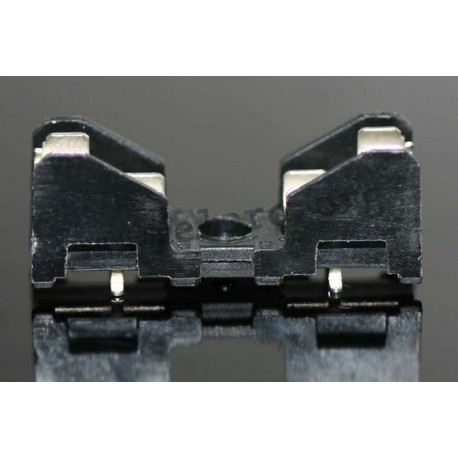

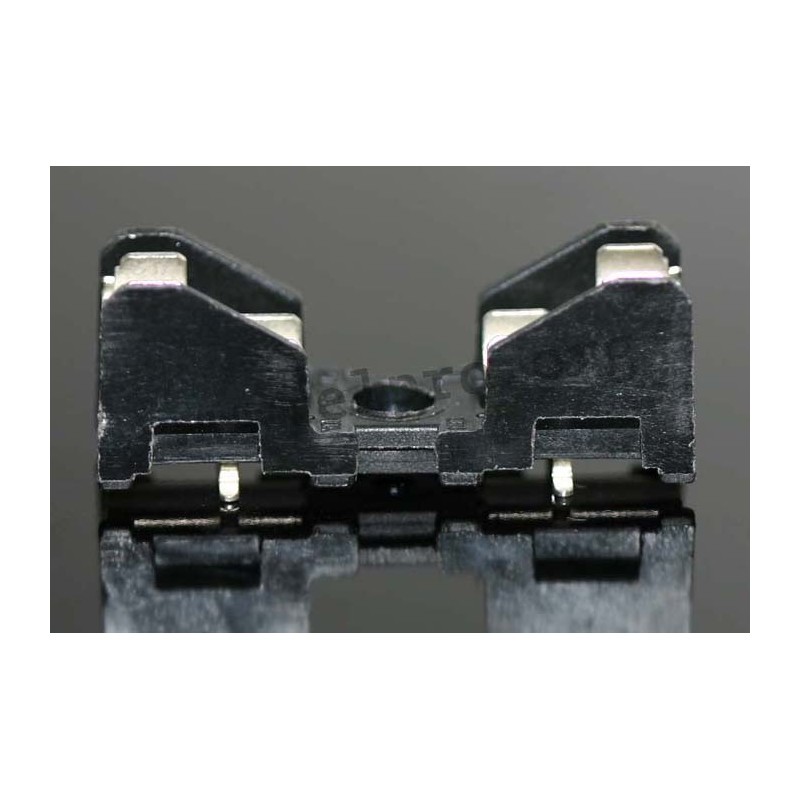

Schurter series OGD-SMD View larger

OGD SMD

27558 OGD SMD 0031.8241 0031.8241 SMD fuse holders. • For SMD assembly* fuse block accepts 5x20mm and 6.3x32mm fuse links* low profile fuse block with insulation walls* special clips-ends prevent axial fuse-link movement* rated voltageVDE: 500V ACUL/CSA: 600V AC/DC* rated current (VDE / UL/CSA): 10A / 16A* rated power acceptance (10A @ 23°C): 4W* temperature range: -40...+85°C* solderability: 245°C / 3s* protection class: IP00 / IP20

Data sheet

manufacturer
manufacturer's name 0031.8241

Download

Data Sheet

2,59 €

Volume discounts

10 pcs. / 0,684 €

stock: 819
