3-119-589

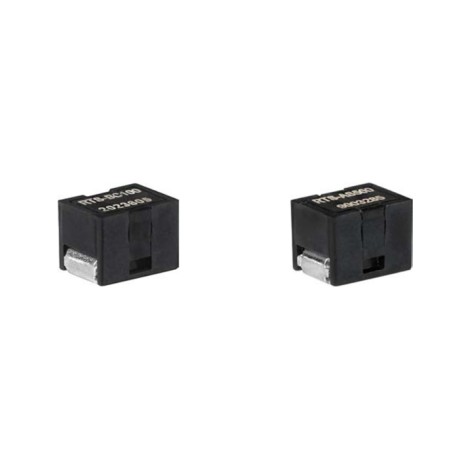

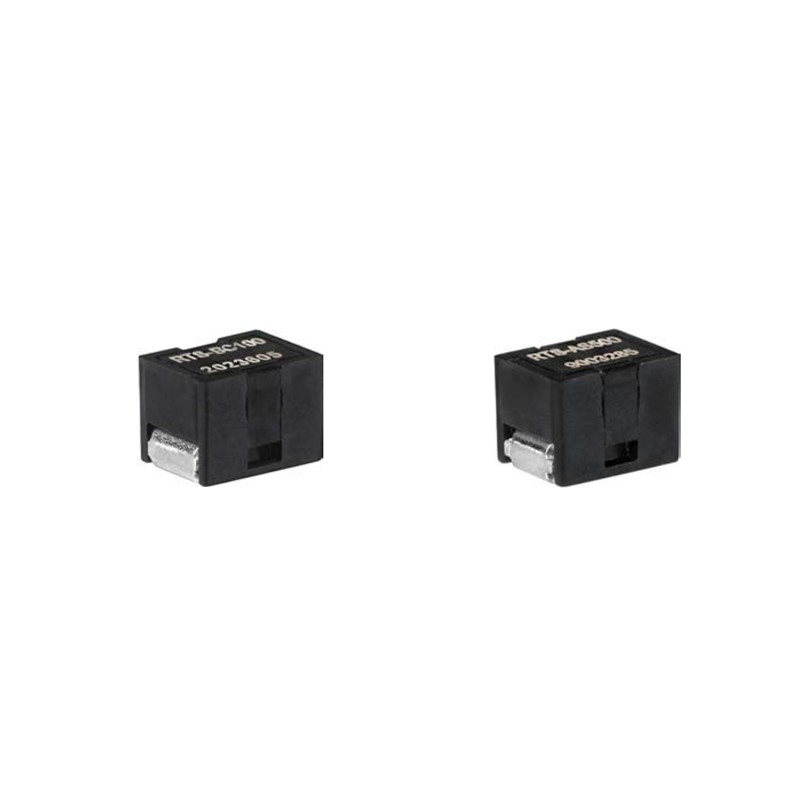

Schurter SMD thermal fuse series RTS

Thermal fuses in an SMD housing with an integrated shunt (3-119-589/3-134-804). These thermal cutoffs have a very high reliability due to a complete galvanic isolation and comply with AEC-Q200. They are suitable for direct PCB mounting, for reflow soldering as well as for a separation of rated voltages up to 60V DC. We offer the following types of this Schurter series: 3-104-513, 3-119-589, 3-134-780 and 3-134-804.

  • rated voltage: 60V DC
  • breaking capacity: bis zu 400A
  • maximal activation force: 50N
  • weight: 0,75g
3-119-589, Schurter SMD thermal fuses, SMD housing, 130A, RTS series

3-119-589

235502 3-119-589 3-119-589 Schurter SMD thermal fuse series RTS. Thermal fuses in an SMD housing with an integrated shunt (3-119-589/3-134-804). These thermal cutoffs have a very high reliability due to a complete galvanic isolation and comply with AEC-Q200. They are suitable for direct PCB mounting, for reflow soldering as well as for a separation of rated voltages up to 60V DC. We offer the following types of this Schurter series: 3-104-513, 3-119-589, 3-134-780 and 3-134-804. rated voltage: 60V DC breaking capacity: bis zu 400A maximal activation force: 50N weight: 0,75g

Specifications

manufacturer
Manufacturer's name 3-119-589
Nominal voltage [V DC] 60
Rated current [A] 130
Data Sheet

Unit price

2,49 €

Stock: 100
Further delivery:
CW 30/2024

Minimum order quantity 10 units or
multiples of 10.
