8020.5075

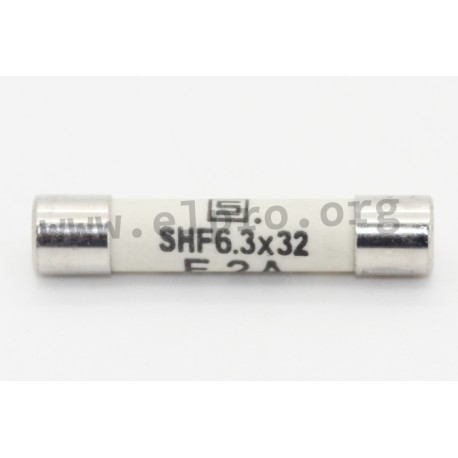

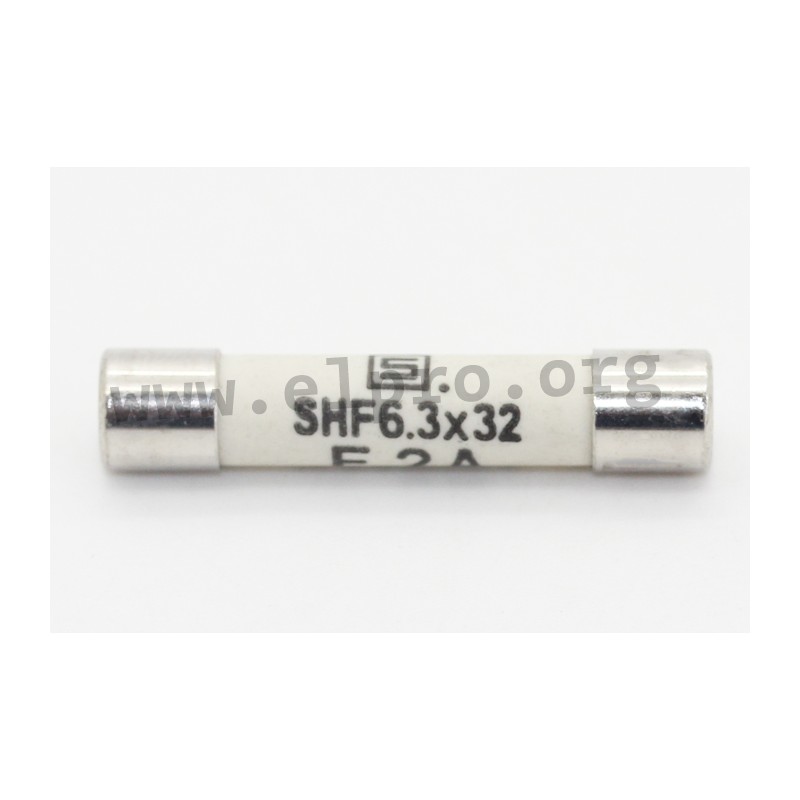

Schurter fuse link series SHF 6,3x32

  • fast acting (F) fuse links in a 6,3x32mm housing
  • with a breaking capacity of more than 1500A
  • comply with UL 248-14
  • can be used as primary protection
  • tube made of ceramics and end caps made of tinned copper
  • suitable for power electronics, frequency converters, DC applications, power supplies and 3-phase applications
  • rated voltage: 500V AC, 500V DC
8020.5075, Schurter fuse links, 6,3x32mm, fast acting, 500V, SHF 6,3x32 series

8020.5075

235155 8020.5075 8020.5075 Schurter fuse link series SHF 6,3x32. fast acting (F) fuse links in a 6,3x32mm housing with a breaking capacity of more than 1500A comply with UL 248-14 can be used as primary protection tube made of ceramics and end caps made of tinned copper suitable for power electronics, frequency converters, DC applications, power supplies and 3-phase applications rated voltage: 500V AC, 500V DC

Specifications

manufacturer
Manufacturer's name 8020.5075
Nominal voltage [V DC] 400
Nominal voltage [V AC] 500
Voltage drop, max. [mV] 190
Melting integral [A²s] 33,2
Rated current [A] 5
Data Sheet

Unit price

0,444 €

Stock: 70
Further delivery:
CW 40/2024

Minimum order quantity 10 units or
multiples of 10.
