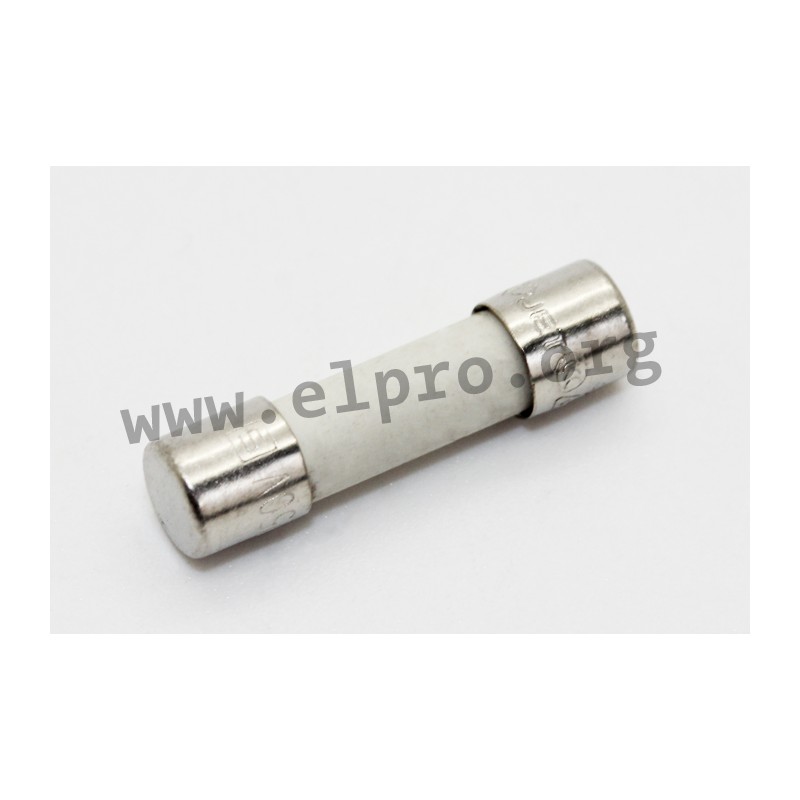

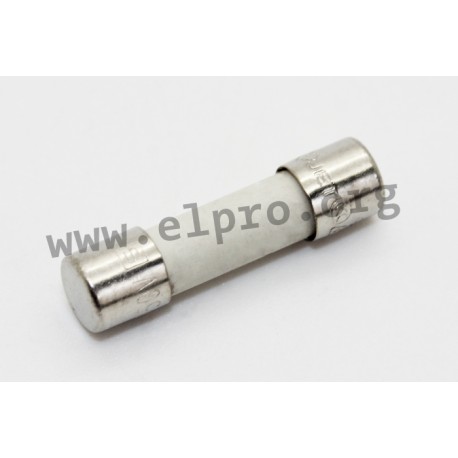

Schurter fuse link series SPT 5x20

  • time lag (H) fuse links in a compact size (5x20mm)
  • with a breaking capacity of 500 to 1500A
  • comply with IEC60127-2
  • suitable for primary protection
  • tube is made of ceramics and end caps are made of nickel-plated copper alloy
  • rated voltage: 250V AC

0001.2507

235113 0001.2507 0001.2507 Schurter fuse link series SPT 5x20. time lag (H) fuse links in a compact size (5x20mm) with a breaking capacity of 500 to 1500A comply with IEC60127-2 suitable for primary protection tube is made of ceramics and end caps are made of nickel-plated copper alloy rated voltage: 250V AC

Specifications

manufacturer
Manufacturer's name 0001.2507
Nominal voltage [V DC] 300
Nominal voltage [V AC] 250
Voltage drop, max. [mV] 190
Melting integral [A²s] 9,2
Rated current [A] 2
Data Sheet

Unit price

0,188 €

Stock: 200
Further delivery:
CW 38/2024

Minimum order quantity 10 units or
multiples of 10.
