A40-20NI/GN

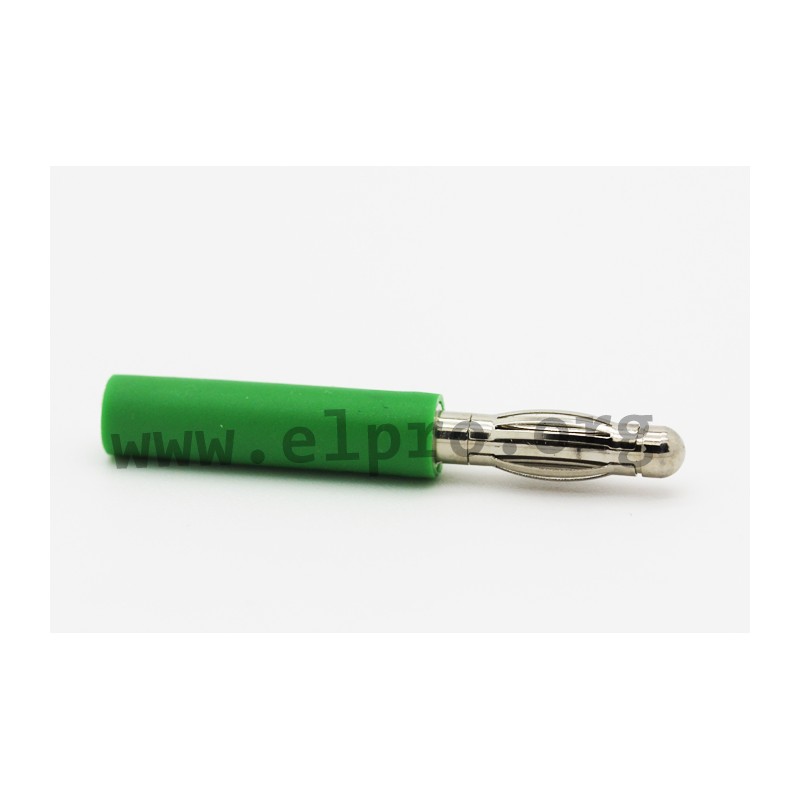

Schützinger CAT I adapters

CAT I adapters for the adaptation of Ø4mm systems to Ø2mm systems suited for a rated current of 10A with a rated voltage of 33V AC or 70V DC. We offer these adapters in black (A40-20NI/SW), red (A40-20NI/RT), blue (A40-20NI/BL), yellow (A40-20NI/GE) and green (A40-20NI/GN).

  • contacts: nickel plated
  • insulators: PA 6.6 (Polyamid)
  • terminals: plug-in socket
  • maximal transition resistance: 6mOhm
  • operating temperature range: -25°C to +80°C

A40-20NI/GN

112320 A40-20NI/GN A40-20NI/GN Schützinger CAT I adapters. CAT I adapters for the adaptation of Ø4mm systems to Ø2mm systems suited for a rated current of 10A with a rated voltage of 33V AC or 70V DC. We offer these adapters in black (A40-20NI/SW), red (A40-20NI/RT), blue (A40-20NI/BL), yellow (A40-20NI/GE) and green (A40-20NI/GN). contacts: nickel plated insulators: PA 6.6 (Polyamid) terminals: plug-in socket maximal transition resistance: 6mOhm operating temperature range: -25°C to +80°C

Specifications

manufacturer
Manufacturer's name A40-20NI/GN
Data Sheet

Unit price

1,67 €

Stock: 25
Further delivery:
CW 16/2024

Minimum order quantity 5 units or
multiples of 5.
