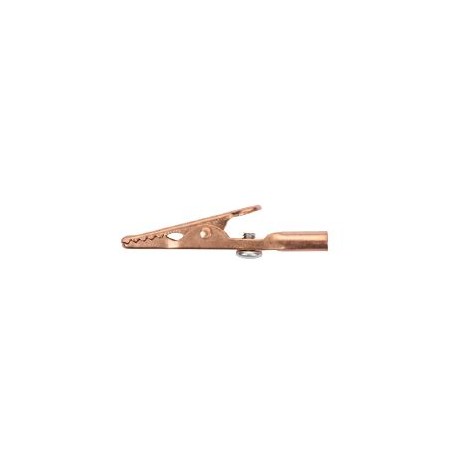

AK 4732 Cu

Schützinger CAT I crocodile clips

Crocodile clips with a socket terminal (Ø4mm). These clips grip up to Ø8mm and are suited for a rated current of 10A (AK 4732 Cu) or 16A (AK 305 Ni) with a rated voltage of 33V AC or 70V DC. They have no insulation.

  • contacts AK 305 Ni: steel, nickel plated
  • contacts AK 4732 Cu: solid copper
  • terminal AK 305 Ni: inline socket
  • terminal AK 4732 Cu: inline socket and screw terminal
  • maximal transition resistance AK 305 Ni: 100mOhm
  • maximal transition resistance AK 4732 Cu: 5mOhm
  • operating temperature range: -40°C to +110°C
AK 4732 Cu

AK 4732 Cu

112332 AK 4732 Cu AK4732CU AK4732CU Schützinger CAT I crocodile clips. Crocodile clips with a socket terminal (Ø4mm). These clips grip up to Ø8mm and are suited for a rated current of 10A (AK 4732 Cu) or 16A (AK 305 Ni) with a rated voltage of 33V AC or 70V DC. They have no insulation. contacts AK 305 Ni: steel, nickel platedcontacts AK 4732 Cu: solid copperterminal AK 305 Ni: inline socketterminal AK 4732 Cu: inline socket and screw terminalmaximal transition resistance AK 305 Ni: 100mOhmmaximal transition resistance AK 4732 Cu: 5mOhmoperating temperature range: -40°C to +110°C

Specifications

manufacturer
Manufacturer's name AK4732CU
Data Sheet

Unit price

2,79 €

Stock: 20
Further delivery:
CW 20/2024

Minimum order quantity 5 units or
multiples of 5.
