FK 9 S Ni blau

Schützinger lamella basket plugs series FK 8 and FK 9

Straight CAT I lamella basket plugs with grip sleeve for Ø 4mm cable, unmounted. They are available in several colours, are suitable for lead cross-sections of up to 2,5mm², and their contact parts are Ni-plated. We offer various types of this Schützinger series.

  • FK_L: with solder terminal
  • FK_S: with screw terminal
  • FK8_: with cross socket
  • insulation: TPE (evoprene)
  • max. transition resistance: 3mΩ
  • rated current: 32A
  • rated voltage: 30V AC/60V DC
  • operating temperature range: -30°C to +100°C

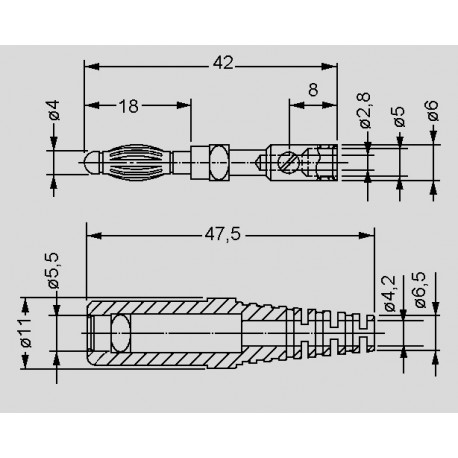

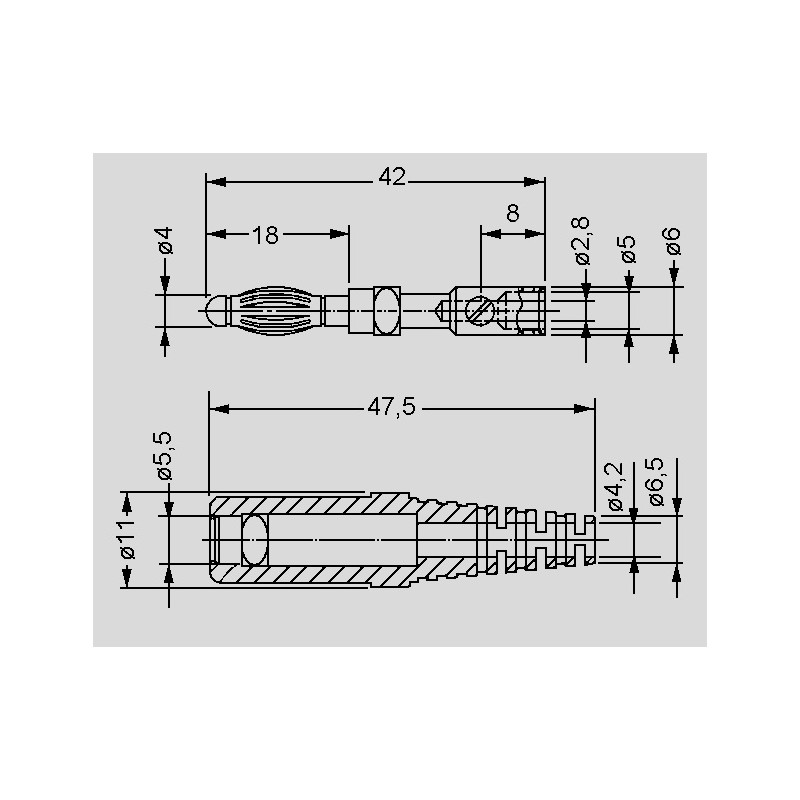

dimensions FK 9 S

FK 9 S Ni blau

43505 FK 9 S Ni blau FK9SNI/BL FK9SNI/BL Schützinger lamella basket plugs series FK 8 and FK 9. Straight CAT I lamella basket plugs with grip sleeve for Ø 4mm cable, unmounted. They are available in several colours, are suitable for lead cross-sections of up to 2,5mm², and their contact parts are Ni-plated. We offer various types of this Schützinger series. FK_L: with solder terminal FK_S: with screw terminal FK8_: with cross socket insulation: TPE (evoprene) max. transition resistance: 3mΩ rated current: 32A rated voltage: 30V AC/60V DC operating temperature range: -30°C to +100°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name FK9SNI/BL
Rated current 32A
Colour blue
Data Sheet

Unit price

1,76 €

Stock: 10
