IBU 2011 Ni / RT

Schützinger built-in sockets series IBU 2011 Ni

Built-in sockets made of polyamid (PA 6.6) with insulated heads, and hoels of Ø 5,1mm. These red and black sockets have nickel-plated contact parts. We offer the following types of this Schützinger series: IBU 2011 / RT and IBU 2011 Ni / SW.

  • transition resistance, max.: 5mΩ
  • rated current: 10A
  • rated voltage: 30V AC / 60V DC
  • operating temperature: -25°C to +90°C

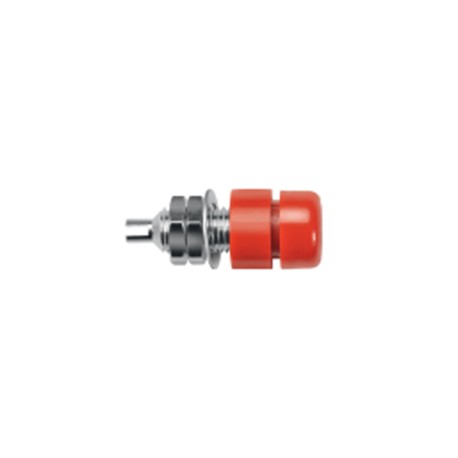

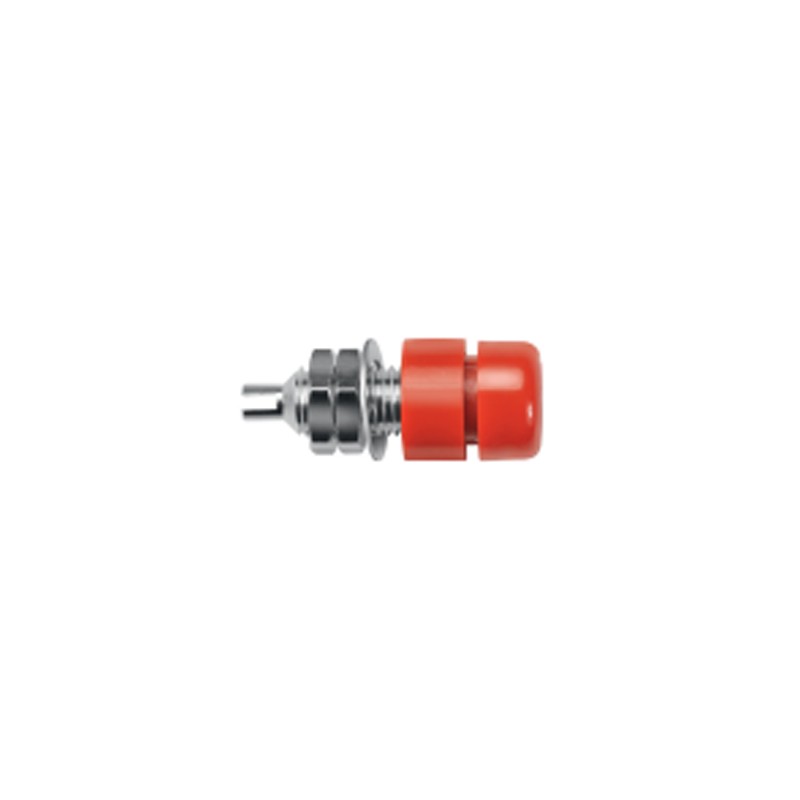

IBU 2011 NI / RT, Schützinger built-in sockets, with insulated heads, 10A, IBU 2011 Ni series

IBU 2011 Ni / RT

253811 IBU 2011 Ni / RT IBU 2011 NI / RT IBU 2011 NI / RT Schützinger built-in sockets series IBU 2011 Ni. Built-in sockets made of polyamid (PA 6.6) with insulated heads, and hoels of Ø 5,1mm. These red and black sockets have nickel-plated contact parts. We offer the following types of this Schützinger series: IBU 2011 / RT and IBU 2011 Ni / SW. transition resistance, max.: 5mΩ rated current: 10A rated voltage: 30V AC / 60V DC operating temperature: -25°C to +90°C

Specifications

manufacturer
Manufacturer's name IBU 2011 NI / RT
Colour red
Data Sheet

Unit price

1,40 €

Stock: 20
Further delivery:
CW 51/2025
