IBU 5568 Au / SW

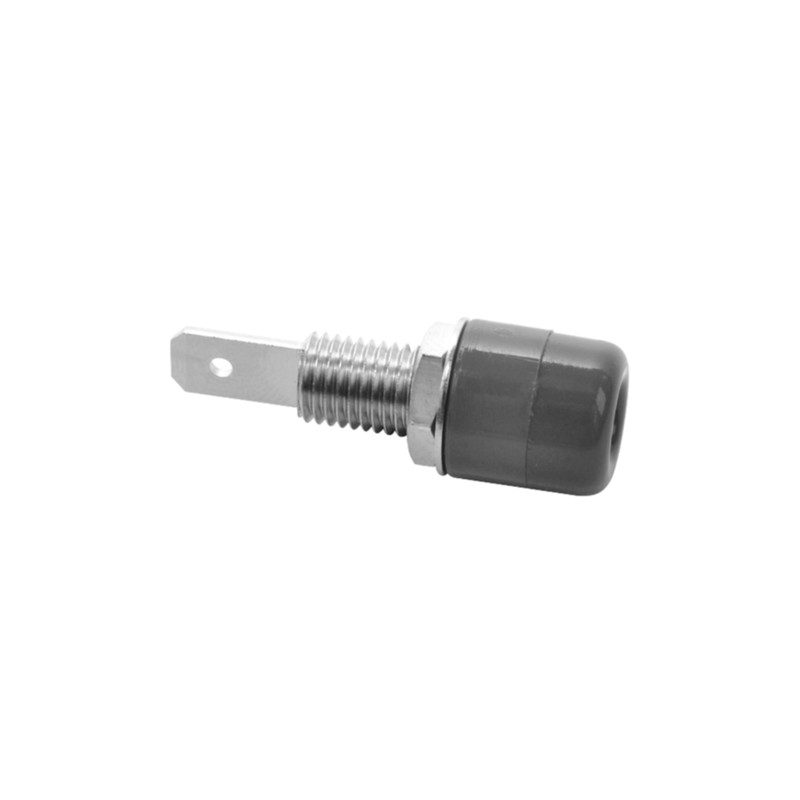

Schützinger built in sockets series IBU 5568 Au

Built in sockets made of polyamid (PA 6.6), with screwed insulated heads, and for holes of Ø 7,5mm. These red or black sockets are suitable for fixture in panels of up to 5mm thickness and their contact parts are gold-plated. We offer the following types of this Schützinger series: IBU 5568 Au / RT and IBU 5568 Au / SW.

  • transition resistance, max.: 3mΩ
  • rated current: 32A
  • rated voltage: 30V AC / 60V DC
  • operating temperature: -25°C to +80°C

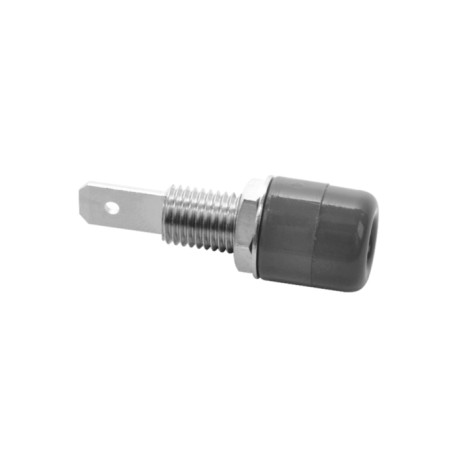

IBU 5568 AU / SW, Schützinger built-in sockets, with insulated head, 32A, IBU 5568 Au series

IBU 5568 Au / SW

253789 IBU 5568 Au / SW IBU 5568 AU / SW IBU 5568 AU / SW Schützinger built in sockets series IBU 5568 Au. Built in sockets made of polyamid (PA 6.6), with screwed insulated heads, and for holes of Ø 7,5mm. These red or black sockets are suitable for fixture in panels of up to 5mm thickness and their contact parts are gold-plated. We offer the following types of this Schützinger series: IBU 5568 Au / RT and IBU 5568 Au / SW. transition resistance, max.: 3mΩ rated current: 32A rated voltage: 30V AC / 60V DC operating temperature: -25°C to +80°C

Specifications

manufacturer
Manufacturer's name IBU 5568 AU / SW
Colour black
Data Sheet

Unit price

2,39 €

Stock: 20
Further delivery:
CW 51/2025
