KU 92 L Ni blau

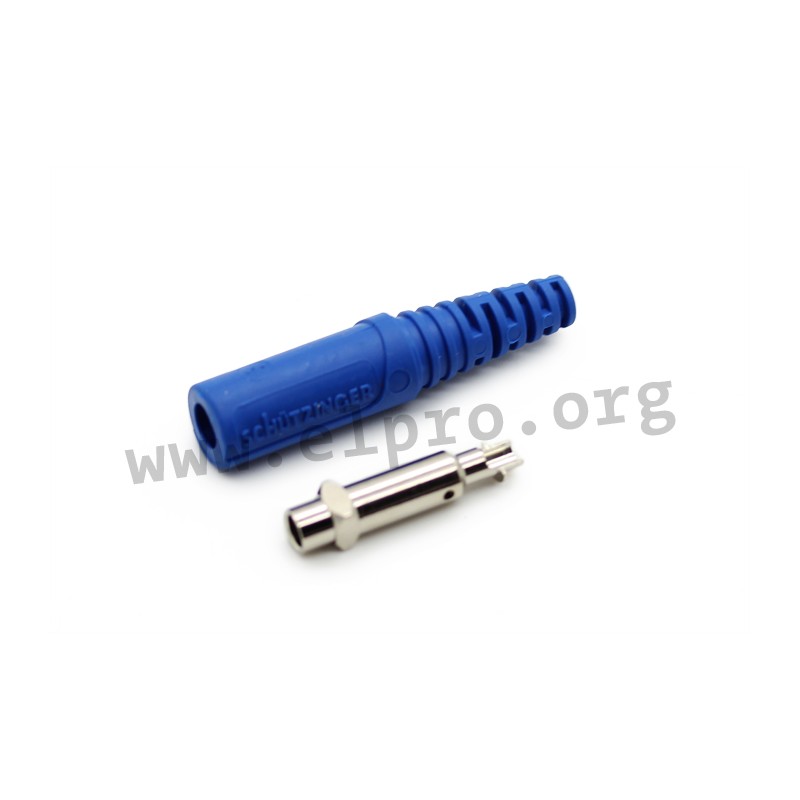

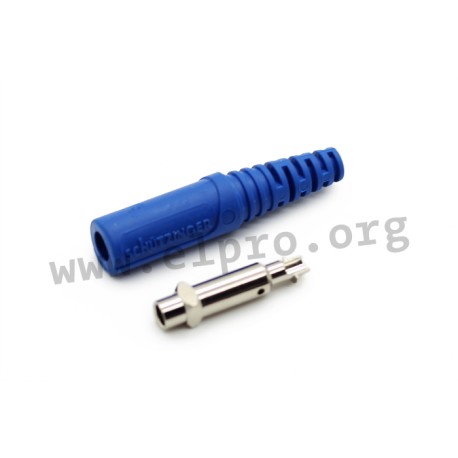

couplers KU 92 L by Schützinger

* CAT I
* straight
* series: KU 92 L
* with grip sleeve, unmounted
* with solder terminal up to 0.5mm² for Ø 2mm cable
* several colours
* contact parts Ni-plated
* insulation: TPE (Evoprene)
* max. transition resistance: 3mΩ
* rated current: 10A
* rated voltage: 30V AC/60V DC
* operating temperature range: -30°C...+110°C
* by Schützinger

KU 92 L Ni blau

43525 KU 92 L Ni blau KU92LNI/BL KU92LNI/BL couplers KU 92 L by Schützinger. * CAT I* straight* series: KU 92 L* with grip sleeve, unmounted* with solder terminal up to 0.5mm² for Ø 2mm cable* several colours* contact parts Ni-plated* insulation: TPE (Evoprene)* max. transition resistance: 3mΩ* rated current: 10A* rated voltage: 30V AC/60V DC* operating temperature range: -30°C...+110°C* by Schützinger

Specifications

manufacturer
Manufacturer's name KU92LNI/BL
Rated current 10A
Colour blue
Data Sheet

Unit price

1,42 €

Stock: 55
Further delivery:
CW 16/2024

Minimum order quantity 5 units or
multiples of 5.
