SEB 7077 Ni / BL

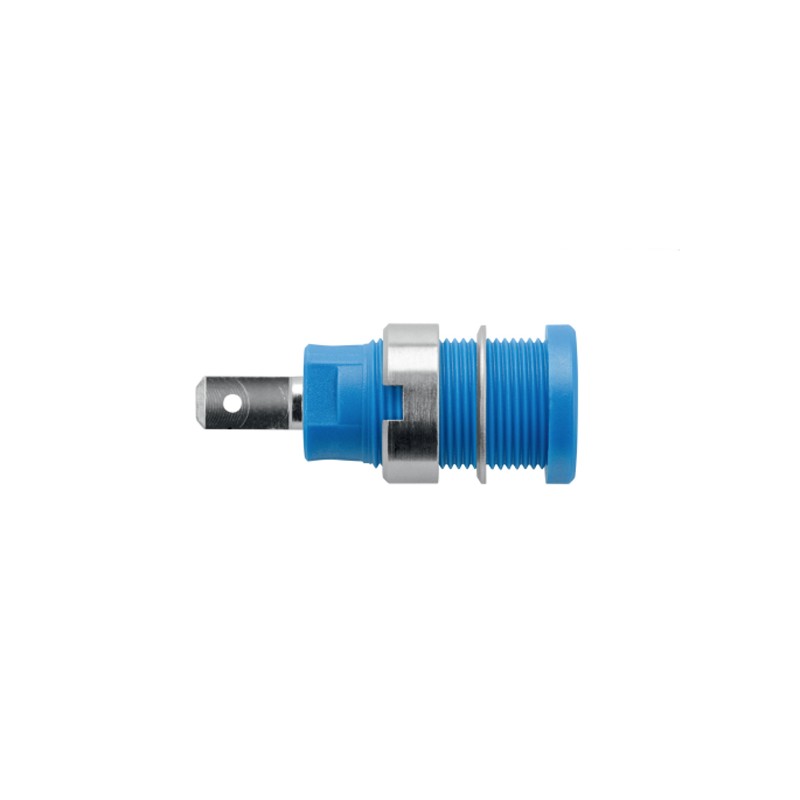

Schützinger safety sockets series SEB 7077 Ni

Safety threaded sockets in various colours and for fitting into panels of a thickness up to 6mm. They have Ni-plated contacts and conform with measurement category III. We offer the following types of this Schützinger series: SEB7077NI/BL, SEB7077NI/GN, SEB7077NI/RT, SEB7077NI/SW, and SEB7077NI/GE.

  • mounting hole Ø: 12,2mm
  • insulation: PA 6.6 (polyamid)
  • terminals: tab 4.8x0.8mm
  • transition resistance: 5mΩ
  • rated current: 24A
  • rated voltage: 1000V (Cat. III)
  • operating temperature: -25°C to +80°C

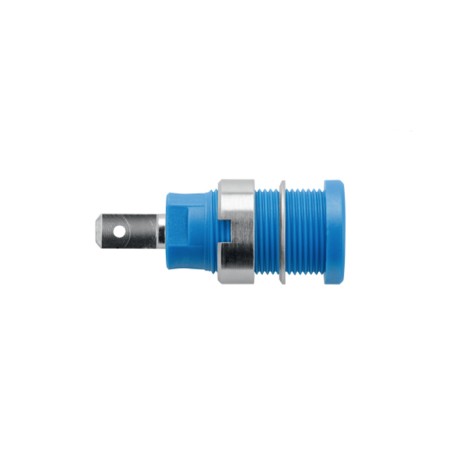

SEB 7077 NI / BL, Schützinger safety sockets, 24A, SEB 7077 Ni series

SEB 7077 Ni / BL

253719 SEB 7077 Ni / BL SEB 7077 NI / BL SEB 7077 NI / BL Schützinger safety sockets series SEB 7077 Ni. Safety threaded sockets in various colours and for fitting into panels of a thickness up to 6mm. They have Ni-plated contacts and conform with measurement category III. We offer the following types of this Schützinger series: SEB7077NI/BL, SEB7077NI/GN, SEB7077NI/RT, SEB7077NI/SW, and SEB7077NI/GE. mounting hole Ø: 12,2mm insulation: PA 6.6 (polyamid) terminals: tab 4.8x0.8mm transition resistance: 5mΩ rated current: 24A rated voltage: 1000V (Cat. III) operating temperature: -25°C to +80°C

Specifications

manufacturer
Manufacturer's name SEB 7077 NI / BL
Colour blue
Data Sheet

Unit price

1,27 €

Stock: 20
Further delivery:
CW 51/2025
