SEB 8660 Ni / RT

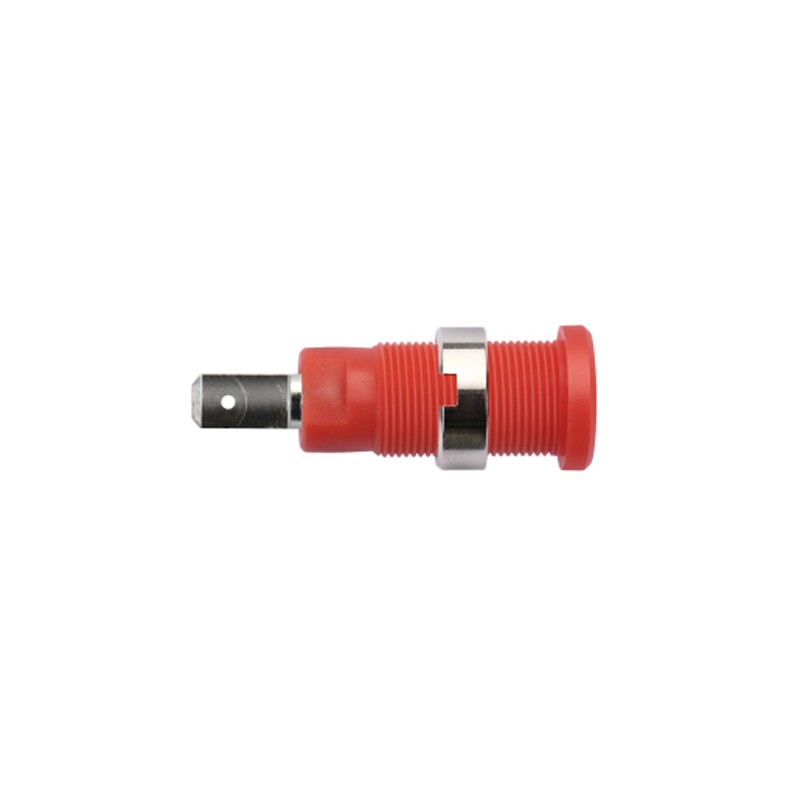

Schützinger safety sockets series SEB 8660 Ni

Safety threaded sockets in various colours and for fitting into panels of a thickness up to 9mm. They have Ni-plated contacts and conform with measurement category III. We offer the following types of this Schützinger series: SEB 8660 Ni / RT and SEB 8660 Ni / SW.

  • mounting hole Ø: 8,2mm
  • insulation: PA 6.6 (polyamid)
  • terminals: FR 2.8 mm x 0.8 mm
  • transition resistance: 5mΩ
  • rated current: 10A
  • rated voltage: 600V (Cat. III)
  • operating temperature: -25°C to +75°C

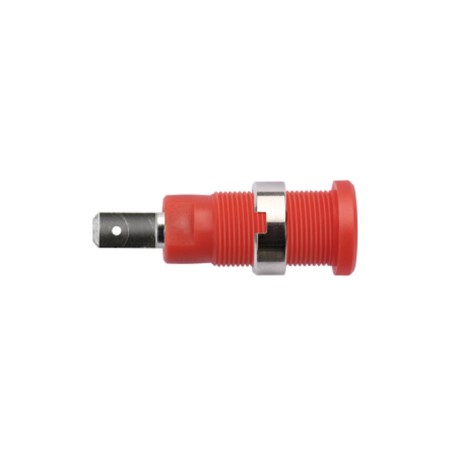

SEB 8660 NI / RT, Schützinger safety sockets, 10A, SEB 8660 Ni series

SEB 8660 Ni / RT

253805 SEB 8660 Ni / RT SEB 8660 NI / RT SEB 8660 NI / RT Schützinger safety sockets series SEB 8660 Ni. Safety threaded sockets in various colours and for fitting into panels of a thickness up to 9mm. They have Ni-plated contacts and conform with measurement category III. We offer the following types of this Schützinger series: SEB 8660 Ni / RT and SEB 8660 Ni / SW. mounting hole Ø: 8,2mm insulation: PA 6.6 (polyamid) terminals: FR 2.8 mm x 0.8 mm transition resistance: 5mΩ rated current: 10A rated voltage: 600V (Cat. III) operating temperature: -25°C to +75°C

Specifications

manufacturer
Manufacturer's name SEB 8660 NI / RT
Colour red
Data Sheet

Unit price

2,39 €

Stock: 20
Further delivery:
CW 51/2025
