SEPB 8522 Ni / SW

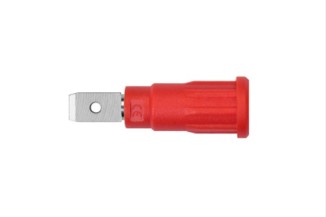

Schützinger safety press-in sockets series SEPB 8522 Ni

safety sockets for pressing into panels up to 6mm thickness. These sockets have a polyamid insulation and nickel-plated contact parts. We offer the following types of this Schützinger series: SEPB 8522 Ni / RT and SEPB 8522 Ni / SW.

  • terminal: FR 4.8 x 0.8 mm
  • transition resistance: 5mΩ
  • rated voltage: 600V (Cat. II)
  • rated current: 10A
  • operating temperature: -25 to 80°C

SEPB 8522 Ni / SW SEPB 8522 NI / SW

SEPB 8522 Ni / SW

253808 SEPB 8522 Ni / SW SEPB 8522 NI / SW SEPB 8522 NI / SW Schützinger safety press-in sockets series SEPB 8522 Ni. safety sockets for pressing into panels up to 6mm thickness. These sockets have a polyamid insulation and nickel-plated contact parts. We offer the following types of this Schützinger series: SEPB 8522 Ni / RT and SEPB 8522 Ni / SW. terminal: FR 4.8 x 0.8 mm transition resistance: 5mΩ rated voltage: 600V (Cat. II) rated current: 10A operating temperature: -25 to 80°C

Specifications

manufacturer
Manufacturer's name SEPB 8522 NI / SW
Colour black
Data Sheet

Unit price

3,09 €

Stock: 20
Further delivery:
CW 51/2025
