C08S-3R0-0003

Sech double-layer capacitor series C and M00S

Electrostatic double-layer capacitors (EDLCs), with a high capacitance due to a low ESR, as well as with a service life of 500 000 resp. 1 000 000 (C35S_) cycles. We offer various types of this Sech series.

  • operating temperature: -40 to +65°C
  • rated voltage: 3V, resp. 6V (M00S-006-05H0)
  • capacitance tolerance: -10/+20%
  • capacitance tolerance C35S_: 0/+20%
  • bulk

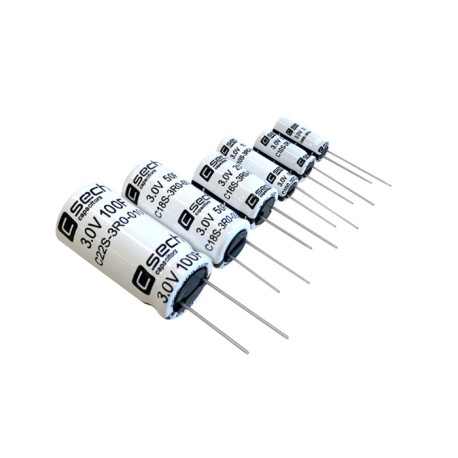

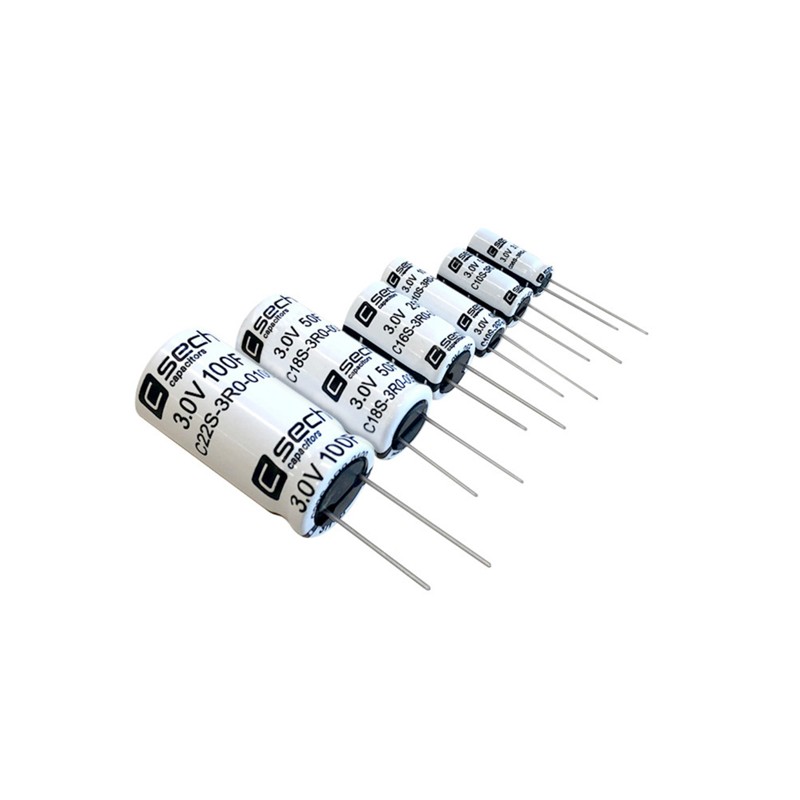

C08S-3R0-0003, Sech UltraCaps, 3V, C series

C08S-3R0-0003

258078 C08S-3R0-0003 C08S-3R0-0003 Sech double-layer capacitor series C and M00S. Electrostatic double-layer capacitors (EDLCs), with a high capacitance due to a low ESR, as well as with a service life of 500 000 resp. 1 000 000 (C35S_) cycles. We offer various types of this Sech series. operating temperature: -40 to +65°C rated voltage: 3V, resp. 6V (M00S-006-05H0) capacitance tolerance: -10/+20% capacitance tolerance C35S_: 0/+20% bulk

Specifications

manufacturer
Manufacturer's name C08S-3R0-0003
Nominal voltage [V DC] 3
Equivalent series resistance [mΩ] 45
Capacity [F] 3
Diameter [mm] 8
Pitch [mm] 3,5
Dimensions [mm] 20x8
Data Sheet

Unit price

0,624 €

Stock: 0
Further delivery:
CW 41/2026

Minimum order quantity 9.600 units or
multiples of 9.600.
