C10S-3R0-0010

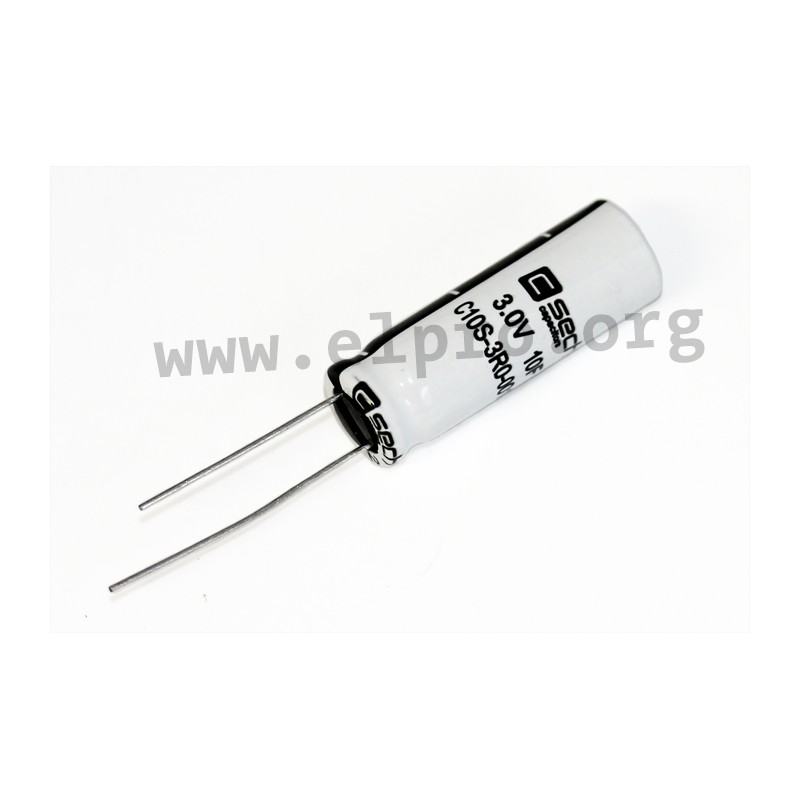

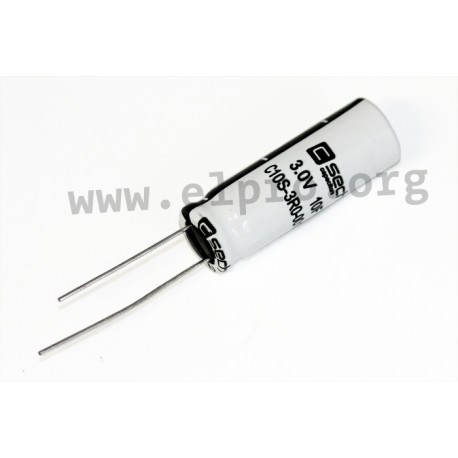

Sech double-layer capacitor series C

  • electrostatic double-layer capacitors (EDLCs)
  • a high capacitance due to a low ESR
  • with a service life of 500 000 resp. 1 000 000 (C35S_) cycles
  • operating temperature: -40 to +65°C
  • capacitance tolerance: -10/+20%
  • capacitance tolerance C35S_: 0/+20%
  • bulk
C10S-3R0-0010, Sech UltraCaps, 3V, C series

C10S-3R0-0010

236686 C10S-3R0-0010 C10S-3R0-0010 Sech double-layer capacitor series C. electrostatic double-layer capacitors (EDLCs) a high capacitance due to a low ESR with a service life of 500 000 resp. 1 000 000 (C35S_) cycles operating temperature: -40 to +65°C capacitance tolerance: -10/+20% capacitance tolerance C35S_: 0/+20% bulk

Specifications

manufacturer
Manufacturer's name C10S-3R0-0010
Nominal voltage [V DC] 3
Equivalent series resistance [mΩ] 25
Capacity [F] 10
Pitch [mm] 5
Dimensions [mm] 30x10
Continuous current [A] 2,5
Short-term peak current [A] 10,7
Data Sheet

Unit price

0,832 €

Stock: 0
Further delivery:
CW 41/2026

Minimum order quantity 2.160 units or
multiples of 2.160.
