> Passive elements>Capacitors>Electrostatic double-layer capacitors (EDLCs)>Sech UltraCaps, 3V, C series>C35S-3R0-0360

Manufacturers

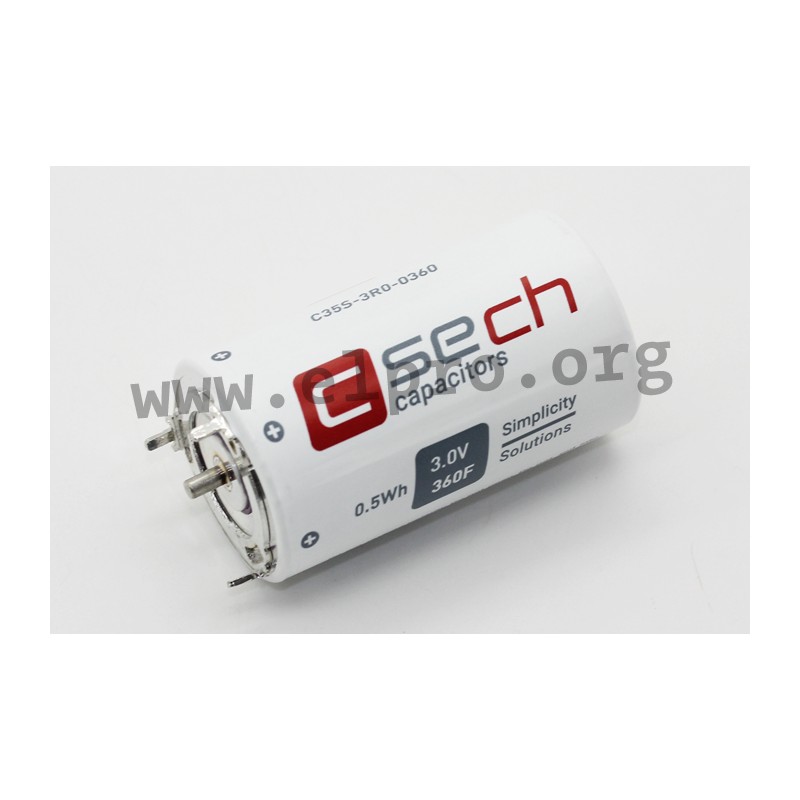

C35S-3R0-0360

Sech double-layer capacitor series C

  • electrostatic double-layer capacitors (EDLCs)
  • a high capacitance due to a low ESR
  • with a service life of 500 000 resp. 1 000 000 (C35S_) cycles
  • operating temperature: -40 to +65°C
  • capacitance tolerance: -10/+20%
  • capacitance tolerance C35S_: 0/+20%
  • bulk
C35S-3R0-0360, Sech UltraCaps, 3V, C series

C35S-3R0-0360

236691 C35S-3R0-0360 C35S-3R0-0360 Sech double-layer capacitor series C. electrostatic double-layer capacitors (EDLCs) a high capacitance due to a low ESR with a service life of 500 000 resp. 1 000 000 (C35S_) cycles operating temperature: -40 to +65°C capacitance tolerance: -10/+20% capacitance tolerance C35S_: 0/+20% bulk

Specifications

manufacturer
Manufacturer's name C35S-3R0-0360
Nominal voltage [V DC] 3
Equivalent series resistance [mΩ] 1,4
Capacity [F] 360
Diameter [mm] 35
Pitch [mm] 360
Dimensions [mm] 62,7x35,3
Continuous current [A] 25
Short-term peak current [A] 329
Data Sheet

Unit price

8,09 €

Stock: 43
Further delivery:
CW 24/2026
