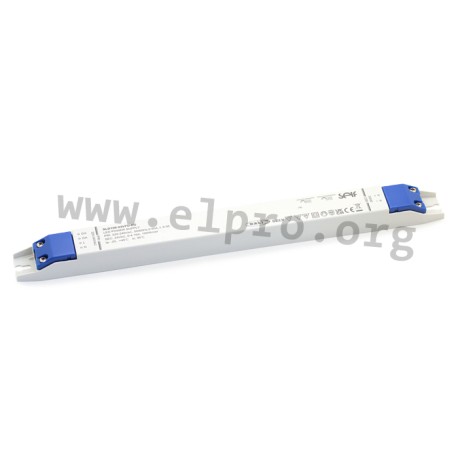

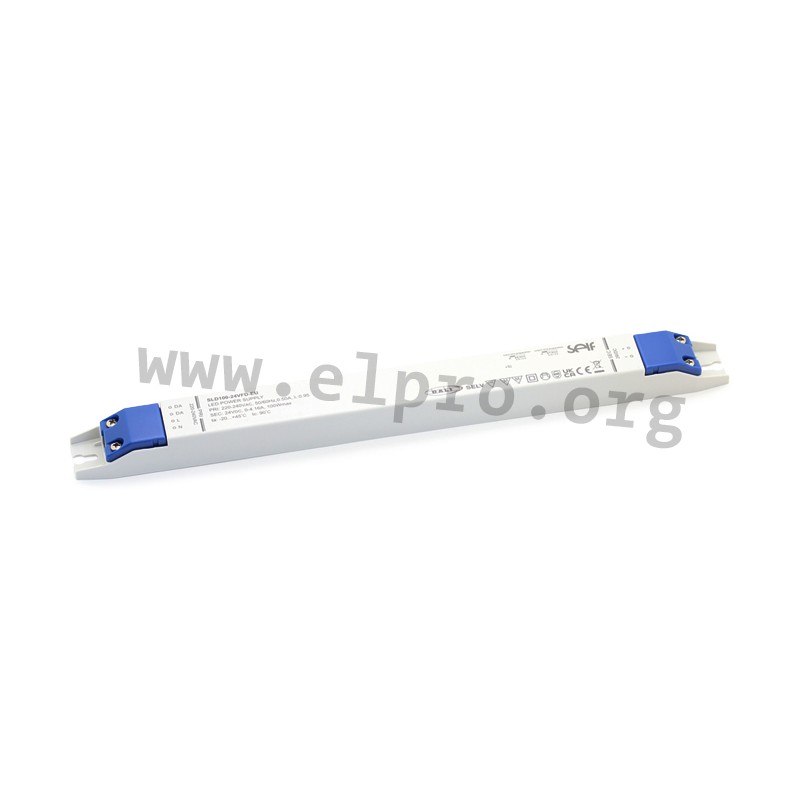

SLD100-48VFD-EU

Self LED driver series SLD100-VFD-EU

LED drivers in a plastic housing (IP20) with 100W, a constant voltage, protection class II and a low no-load power (<0,5W). These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overvoltage, overtemperature as well as short circuit. Theyare dimmable, have a DALI 2.0 interface and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Self series: SLD100-24VFD-EU and SLD100-48VFD-EU.

  • single output
  • output: 100W
  • input voltage: 198 to 264V AC (50/60Hz), 220 to 280V DC
  • maximal input inrush current: 50A
  • service life: 50.000h
  • operating temperature: -20 to +45°C
  • dimensions: 354x30x22mm
  • weight: 310g

SLD100-48VFD-EU

242206 SLD100-48VFD-EU SLD100-48VFD-EU Self LED driver series SLD100-VFD-EU. LED drivers in a plastic housing (IP20) with 100W, a constant voltage, protection class II and a low no-load power (&lt;0,5W). These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overvoltage, overtemperature as well as short circuit. Theyare dimmable, have a DALI 2.0 interface and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the following types of this Self series: SLD100-24VFD-EU and SLD100-48VFD-EU. single output output: 100W input voltage: 198 to 264V AC (50/60Hz), 220 to 280V DC maximal input inrush current: 50A service life: 50.000h operating temperature: -20 to +45°C dimensions: 354x30x22mm weight: 310g

Specifications

manufacturer
Manufacturer's name SLD100-48VFD-EU
Output voltage [V] 48
Efficiency [%] 93,5
Output current range [A] 0...2,08
Output power [W] 100
Ripple [mVp-p] 600
Data Sheet

Unit price

50,09 €

Stock: 12
Further delivery:
CW 30/2024
