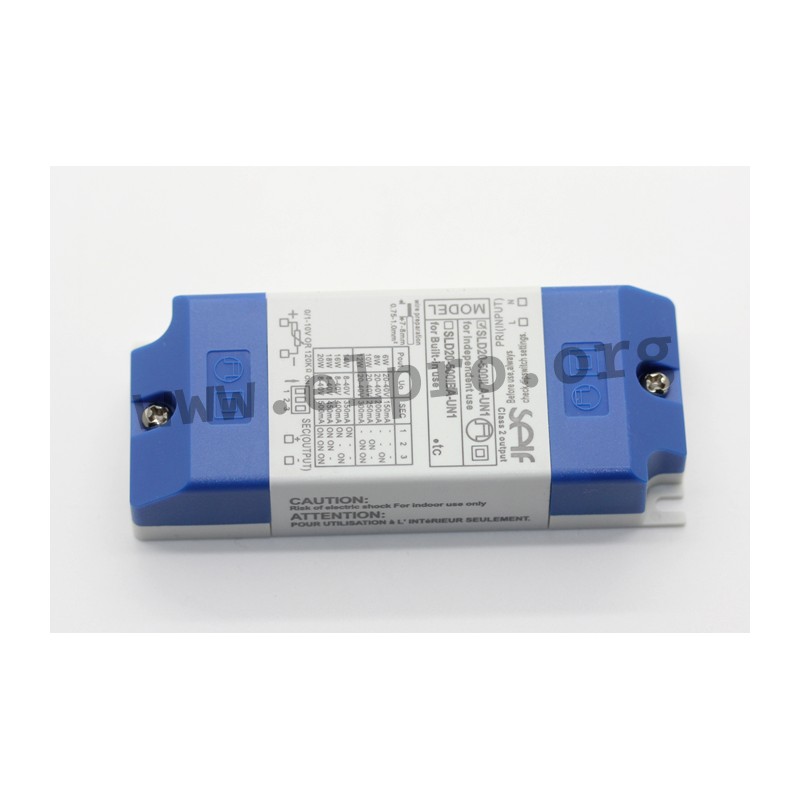

SLD20-500ILA-UN1

Self LED driver series SLD20-ILA-UN1

Flickerfree LED drivers in a plastic housing (IP20) with 20W, a constant current (selectable through a DIL switch) and protection class II. These SELV compliant devices have a dimming function (1 to 10V) and are protected against short circuit, overload, overvoltage as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2. We offer the type SLD20-500ILA-UN1 of this Self series.

  • single output
  • output: 20W
  • input voltage: 110/120 to 277V AC
  • maximal input inrush current: 10A
  • operating temperature: -20 to +50°C
  • service life: 50.000h
  • weight: 105g

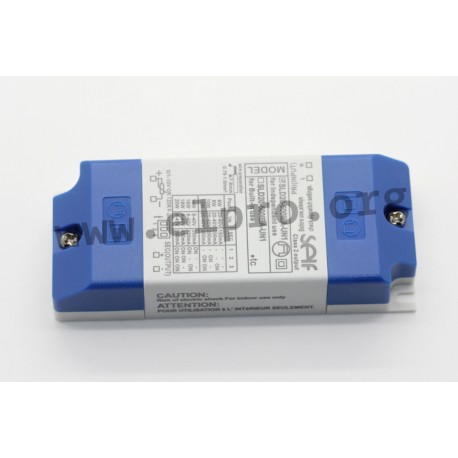

SLD20-500ILA-UN1, Self LED drivers, 20W, IP20, constant current, dimmable, SLD20-ILA-UN1 series

SLD20-500ILA-UN1

235468 SLD20-500ILA-UN1 SLD20-500ILA-UN1 Self LED driver series SLD20-ILA-UN1. Flickerfree LED drivers in a plastic housing (IP20) with 20W, a constant current (selectable through a DIL switch) and protection class II. These SELV compliant devices have a dimming function (1 to 10V) and are protected against short circuit, overload, overvoltage as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2. We offer the type SLD20-500ILA-UN1 of this Self series. single output output: 20W input voltage: 110/120 to 277V AC maximal input inrush current: 10A operating temperature: -20 to +50°C service life: 50.000h weight: 105g

Specifications

manufacturer
Manufacturer's name SLD20-500ILA-UN1
Efficiency [%] 85
Output current range [A] 0,15...0,5
Output power [W] 20
Output voltage range [V] 8...40
Data Sheet

Unit price

20,89 €

Volume discounts

Quantity Unit price
50 + 19,19 €

Stock: 0
Next incoming goods:
CW 23/2024
96 units

Further delivery:
CW 34/2024
