SLT160-700IL-EU

Self LED driver series SLT160-IL-EU

Flickerfree LED drivers in a non-insulated plastic housing (IP20) with 160W and a constant current. These devices are suitable for LED lighting applications and are protected against overload, short circuit as well as overtemperature. They are not dimmable and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2. We offer the type SLT160-700IL-EU of this Self series.

  • single output
  • output: 160W
  • input voltage: 220 to 240V AC
  • maximal input inrush current: 80A
  • operating temperature: -20 to +50°C
  • service life (Tc = 50°C): 50.000h
  • weight: 237g

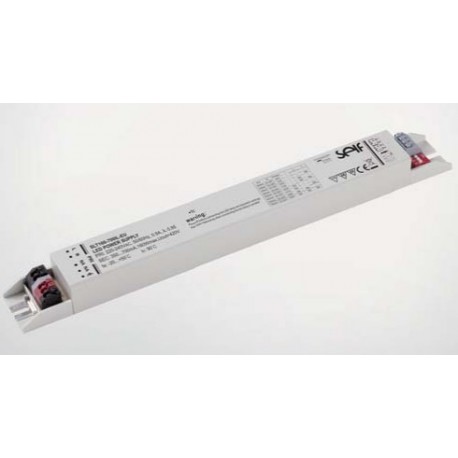

SLT160-700IL-EU, Self LED switching power supplies, 160W, IP20, constant current CC, SLT160-IL-EU series

SLT160-700IL-EU

126937 SLT160-700IL-EU SLT160-700IL-EU Self LED driver series SLT160-IL-EU. Flickerfree LED drivers in a non-insulated plastic housing (IP20) with 160W and a constant current. These devices are suitable for LED lighting applications and are protected against overload, short circuit as well as overtemperature. They are not dimmable and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2. We offer the type SLT160-700IL-EU of this Self series. single output output: 160W input voltage: 220 to 240V AC maximal input inrush current: 80A operating temperature: -20 to +50°C service life (Tc = 50°C): 50.000h weight: 237g

Specifications

manufacturer
Manufacturer's name SLT160-700IL-EU
Efficiency [%] 95
Output power [W] 160
Output current [mA] 700
Ripple & noise [%] 3
Output voltage range [V] 120...228
Data Sheet

Unit price

12,19 €

Stock: 68
Further delivery:
CW 34/2024
