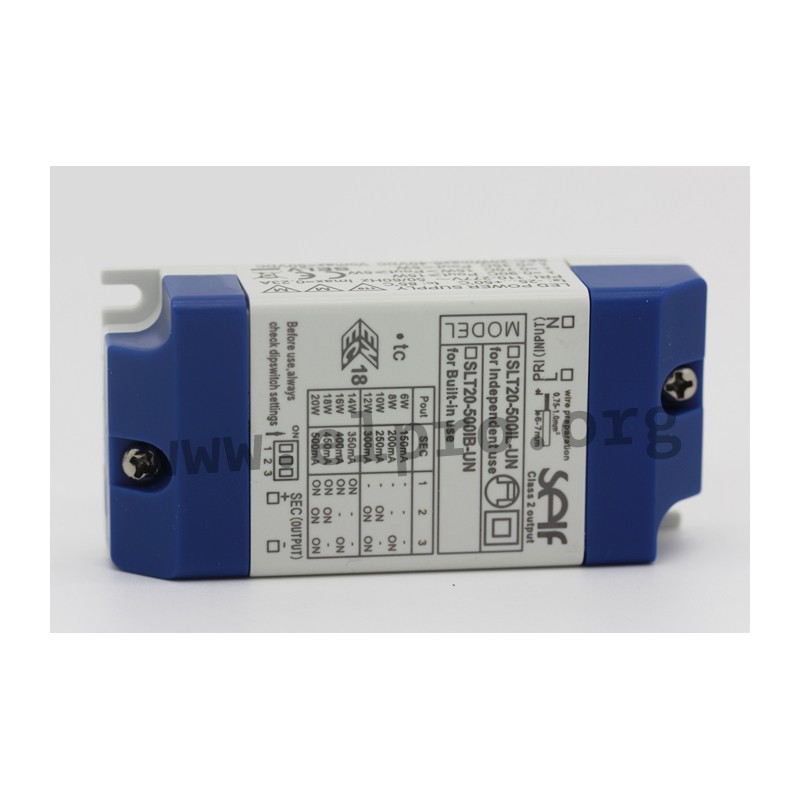

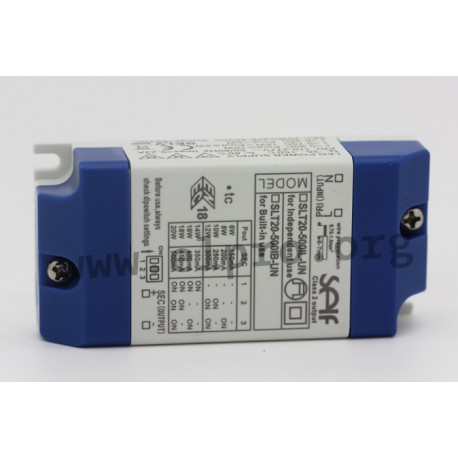

SLT20-500IL-UN

Self LED driver series SLT20-IL-UN

Flickerfree LED drivers in a plastic housing (IP20) with 20W, a constant current and protection class II. These SELV compliant devices are suitable for LED lighting applications and comply with EN6137-2-13, EN61347-1, EN61000-3-2 as well as EN55015. They are not dimmable and are protected against overload, overvoltage, overtemperature as well as short circuit. We offer the type SLT20-500IL-UN of this Self series.

  • single output
  • output: 20W
  • input voltage: 110 bis 277V AC
  • maximal input inrush current: 10A
  • operating temperature: -20 to +50°C
  • service life: 50.000h (Tc = 50°C)
  • dimensions: 85,3x41x22mm
  • weight: 85g
SLT20-500IL-UN

SLT20-500IL-UN

110880 SLT20-500IL-UN SLT20-500IL-UN Self LED driver series SLT20-IL-UN. Flickerfree LED drivers in a plastic housing (IP20) with 20W, a constant current and protection class II. These SELV compliant devices are suitable for LED lighting applications and comply with EN6137-2-13, EN61347-1, EN61000-3-2 as well as EN55015. They are not dimmable and are protected against overload, overvoltage, overtemperature as well as short circuit. We offer the type SLT20-500IL-UN of this Self series. single output output: 20W input voltage: 110 bis 277V AC maximal input inrush current: 10A operating temperature: -20 to +50°C service life: 50.000h (Tc = 50°C) dimensions: 85,3x41x22mm weight: 85g

Specifications

manufacturer
Manufacturer's name SLT20-500IL-UN
Output voltage [V] 2...42
Efficiency [%] 85
Output power [W] 20
Output current [mA] 150...500
Ripple & noise [%] 5
Data Sheet

Unit price

13,19 €

Volume discounts

Quantity Unit price
100 + 11,19 €
50 + 11,69 €

Stock: 614
Further delivery:
CW 14/2026
