SLT200-48VFG-UN

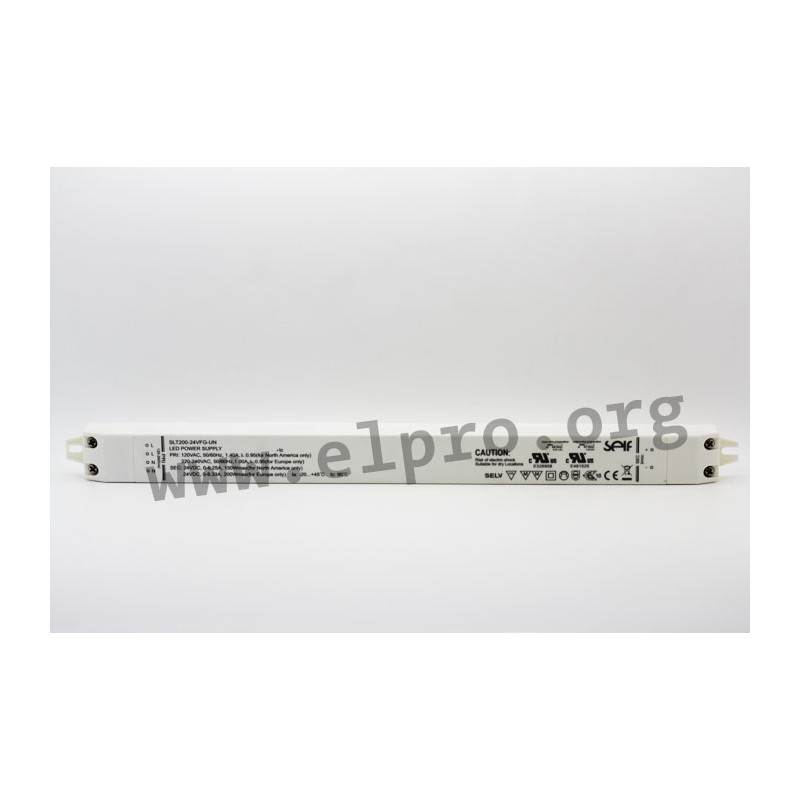

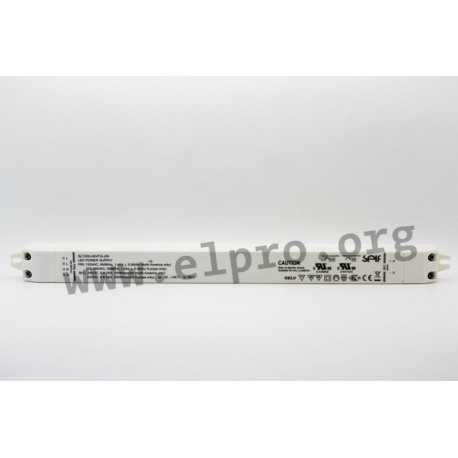

Self LED driver series SLT200-VFG-UN

LED drivers in a plastic housing (IP20) with 200W, a constant voltage and protection class II. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, short circuit as well as overtemperature. They are not dimmable and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2. We offer the following types of this Self series: SLT200-24VFG-UN and SLT200-48VFG-UN.

  • single output
  • output: 200W
  • input voltage: 120 to 240V AC
  • maximal input inrush current: 130A
  • operating temperature: -20 to +45°C
  • service life (Tc = 90°C): 50.000h
  • weight: 400g
SLT200-48VFG-UN, Self LED switching power supplies, 200W, IP20, constant voltage CV, SLT200-VFG-UN series

SLT200-48VFG-UN

126925 SLT200-48VFG-UN SLT200-48VFG-UN Self LED driver series SLT200-VFG-UN. LED drivers in a plastic housing (IP20) with 200W, a constant voltage and protection class II. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, short circuit as well as overtemperature. They are not dimmable and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2. We offer the following types of this Self series: SLT200-24VFG-UN and SLT200-48VFG-UN. single output output: 200W input voltage: 120 to 240V AC maximal input inrush current: 130A operating temperature: -20 to +45°C service life (Tc = 90°C): 50.000h weight: 400g

Specifications

manufacturer
Manufacturer's name SLT200-48VFG-UN
Output voltage [V] 48
Efficiency [%] 94
Output current range [A] 0...4,17
Output power [W] 200
Ripple [mVp-p] 600
Data Sheet

Unit price

48,39 €

Volume discounts

Quantity Unit price
50 + 46,09 €

Stock: 30
Further delivery:
CW 33/2024
