> Power supplies>Power supplies>Switching power supplies for illumination, LED>Self LED drivers, 35W, IP20, constant current, SLT35-IB-UN series>SLT35-1000IB-UN

Manufacturers

SLT35-1000IB-UN

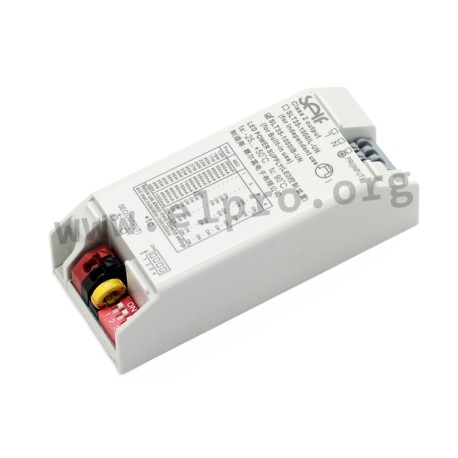

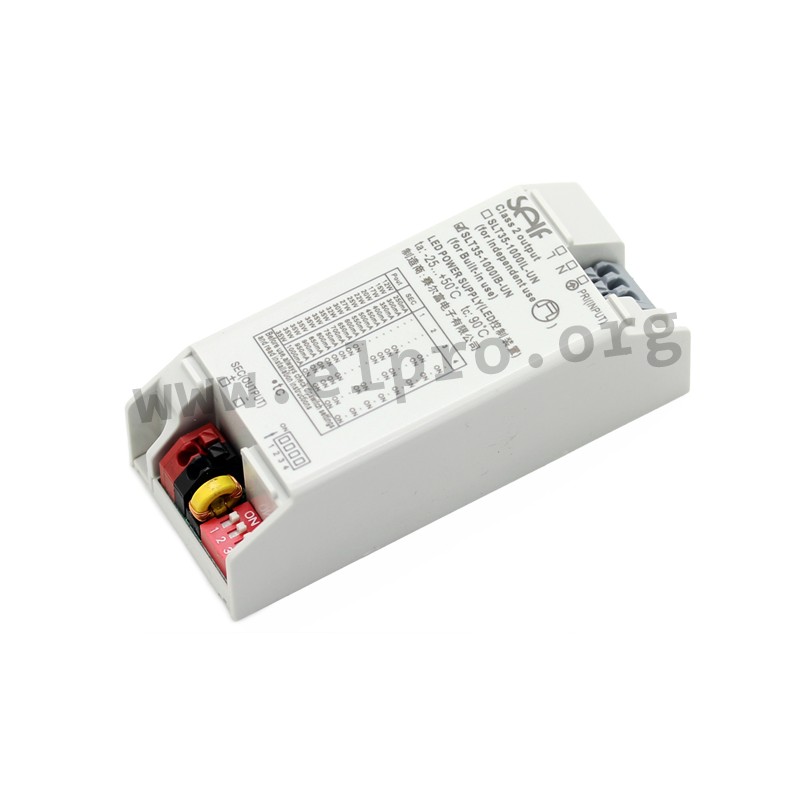

Self LED driver series SLT35-IB-UN

LED drivers in a plastic housing (IP20) with 35W, a constant current, protection class II and a selectable output current. These SELV compliant devices are suitable for LED lighting applications and are protected against short circuit, overload as well as overtemperature. They are not dimmable and comply with EN61347-1, EN61347-2-13, UL1310 as well as EN55015. We offer the type SLT35-1000IB-UN as well as matching end panels 1099-013114-0130 (set of two) of this Self series.

  • single output
  • output: 35W
  • input voltage: 110 to 277V AC (50 to 60Hz)
  • input current: 0,42A
  • input inrush current: 20A
  • operating temperature: -25 to +50°C
  • service life: 50.000h
  • dimensions SLT35_: 95,6x39x30mm
  • dimensions 1099_: 20x31x39mm
  • weight: 160g
SLT35-1000IB-UN, Self LED drivers, 35W, IP20, constant current, SLT35-IB-UN series

SLT35-1000IB-UN

238219 SLT35-1000IB-UN SLT35-1000IB-UN Self LED driver series SLT35-IB-UN. LED drivers in a plastic housing (IP20) with 35W, a constant current, protection class II and a selectable output current. These SELV compliant devices are suitable for LED lighting applications and are protected against short circuit, overload as well as overtemperature. They are not dimmable and comply with EN61347-1, EN61347-2-13, UL1310 as well as EN55015. We offer the type SLT35-1000IB-UN as well as matching end panels 1099-013114-0130 (set of two) of this Self series. single output output: 35W input voltage: 110 to 277V AC (50 to 60Hz) input current: 0,42A input inrush current: 20A operating temperature: -25 to +50°C service life: 50.000h dimensions SLT35_: 95,6x39x30mm dimensions 1099_: 20x31x39mm weight: 160g

Specifications

manufacturer
Manufacturer's name SLT35-1000IB-UN
Output voltage [V] 2...50
Efficiency [%] 87
Output current [A] 0,25...1
Output power [W] 35
Data Sheet

Unit price

16,99 €

Volume discounts

Quantity Unit price
50 + 15,59 €

Stock: 0
Next incoming goods:
CW 23/2024
773 units

Further delivery:
CW 34/2024
