SLT75-12VFG-UN

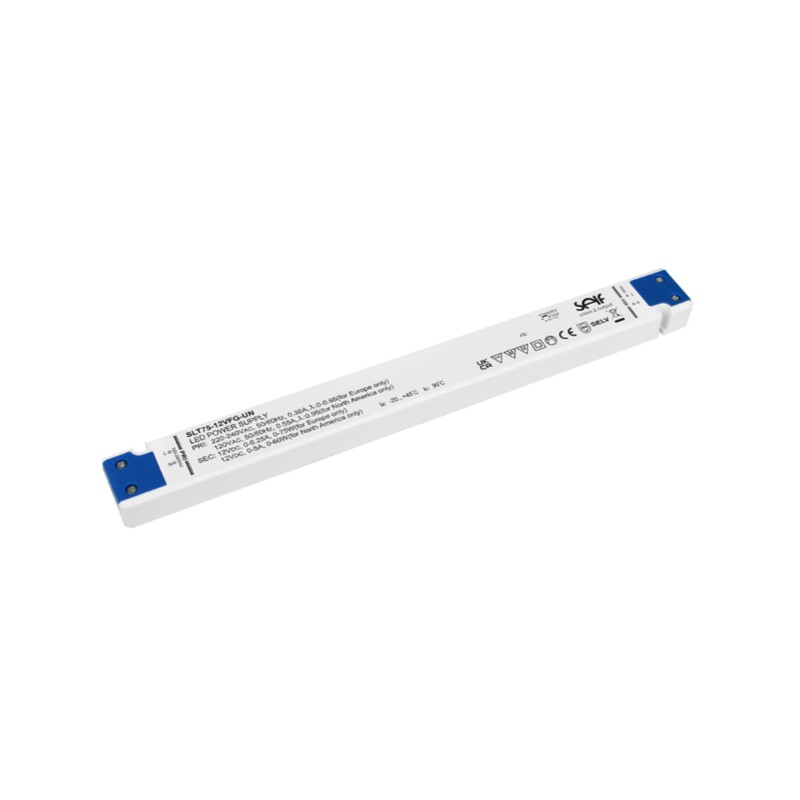

Self LED driver series SLT75-VFG-UN

LED drivers in a plastic housing (IP20) with 75W, a constant voltage and protection class II. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overtemperature as well as short circuit. They are not dimmable. We offer the following types of this Self series: SLT75-12VFG-UN and SLT75-24VFG-UN.

  • single output
  • output: 75W
  • input voltage: 120 to 240V AC
  • maximal input inrush current: 45A
  • no-load power: <0,5W
  • operating temperature: -30 to +80°C
  • dimensions: 289x30x16,5mm
  • weight: 155g

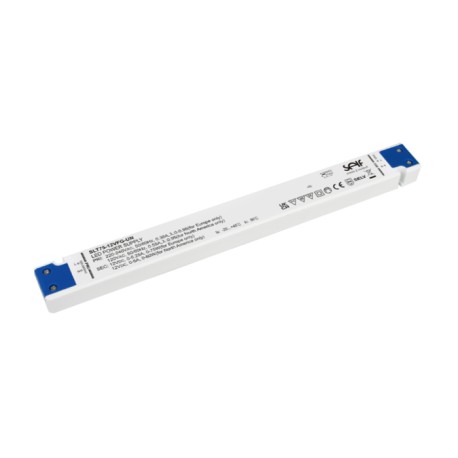

SLT75-12VFG-UN, Self LED drivers, 75W, IP20, constant voltage, SLT75-VFG-UN series

SLT75-12VFG-UN

255618 SLT75-12VFG-UN SLT75-12VFG-UN Self LED driver series SLT75-VFG-UN. LED drivers in a plastic housing (IP20) with 75W, a constant voltage and protection class II. These SELV compliant devices are suitable for LED lighting applications and are protected against overload, overtemperature as well as short circuit. They are not dimmable. We offer the following types of this Self series: SLT75-12VFG-UN and SLT75-24VFG-UN. single output output: 75W input voltage: 120 to 240V AC maximal input inrush current: 45A no-load power: &lt;0,5W operating temperature: -30 to +80°C dimensions: 289x30x16,5mm weight: 155g

Specifications

manufacturer
Manufacturer's name SLT75-12VFG-UN
Output voltage [V] 12
Rated current [A] 6,25
Nominal capacity [W] 75
Data Sheet

Unit price

25,19 €

Volume discounts

Quantity Unit price
100 + 22,09 €
50 + 23,09 €

Stock: 0
Next incoming goods:
CW 08/2026
50 units

Further delivery:
CW 14/2026
