SLT75-24VL-E

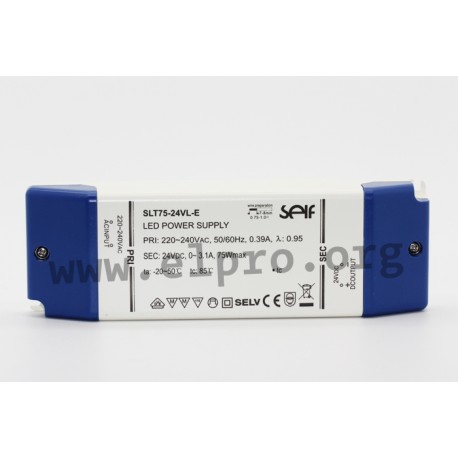

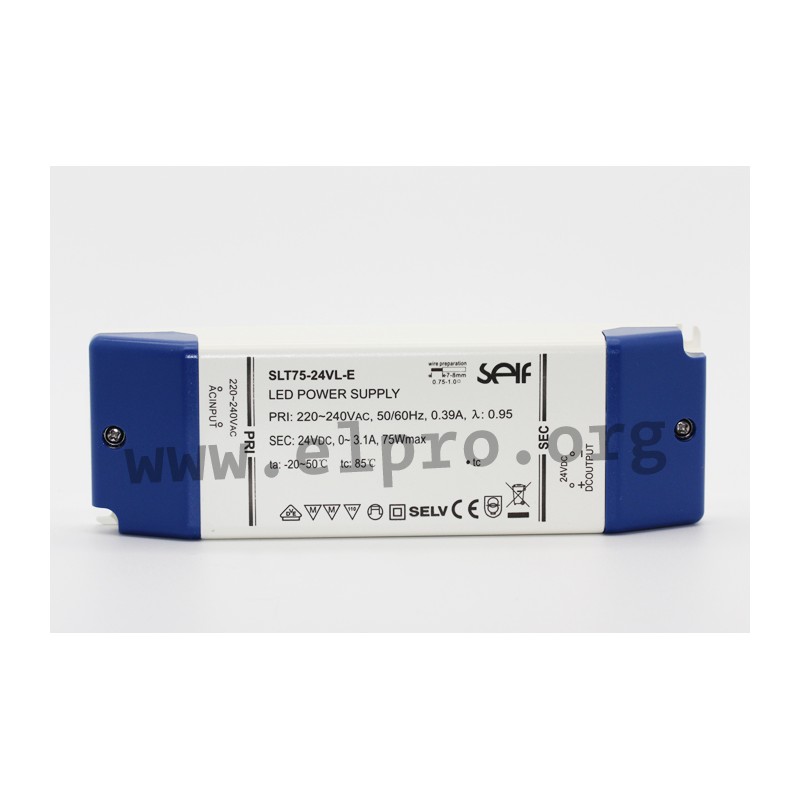

Self LED driver series SLT75-VL-E

LED drivers in a plastic housing (IP20) with 75W, a constant voltage and protection class II. These SELV compliant devices are suitable for LED applications and are protected against overvoltage, overtemperature, overload as well as short circuit. They are not dimmable and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the type SLT75-24VL-E of this Self series.

  • single output
  • output: 75W
  • input voltage: 220 to 240V AC
  • input inrush current: 35A
  • operating temperature: -20 to +50°C
  • service life (Tc = 75°C): 50.000h
  • dimensions: 185x60x31mm
  • weight: 300g
SLT75-24VL-E

SLT75-24VL-E

111337 SLT75-24VL-E SLT75-24VL-E Self LED driver series SLT75-VL-E. LED drivers in a plastic housing (IP20) with 75W, a constant voltage and protection class II. These SELV compliant devices are suitable for LED applications and are protected against overvoltage, overtemperature, overload as well as short circuit. They are not dimmable and comply with EN61347-1, EN61347-2-13 as well as EN55015. We offer the type SLT75-24VL-E of this Self series. single output output: 75W input voltage: 220 to 240V AC input inrush current: 35A operating temperature: -20 to +50°C service life (Tc = 75°C): 50.000h dimensions: 185x60x31mm weight: 300g

Specifications

manufacturer
Manufacturer's name SLT75-24VL-E
Output voltage [V] 24
Efficiency [%] 87,73
Output current [A] 0...3,1
Output power [W] 75
Ripple [mVp-p] 800
Data Sheet

Unit price

26,19 €

Volume discounts

Quantity Unit price
50 + 23,99 €

Stock: 57
Next incoming goods:
CW 20/2024
60 units

Further delivery:
CW 33/2024
