> Passive elements>Fuses>SMD micro fuses>Siba SMD fuses, time lag, 12x4,4mm, 160012 series>160012.3,15GT

Manufacturers

160012.3,15GT

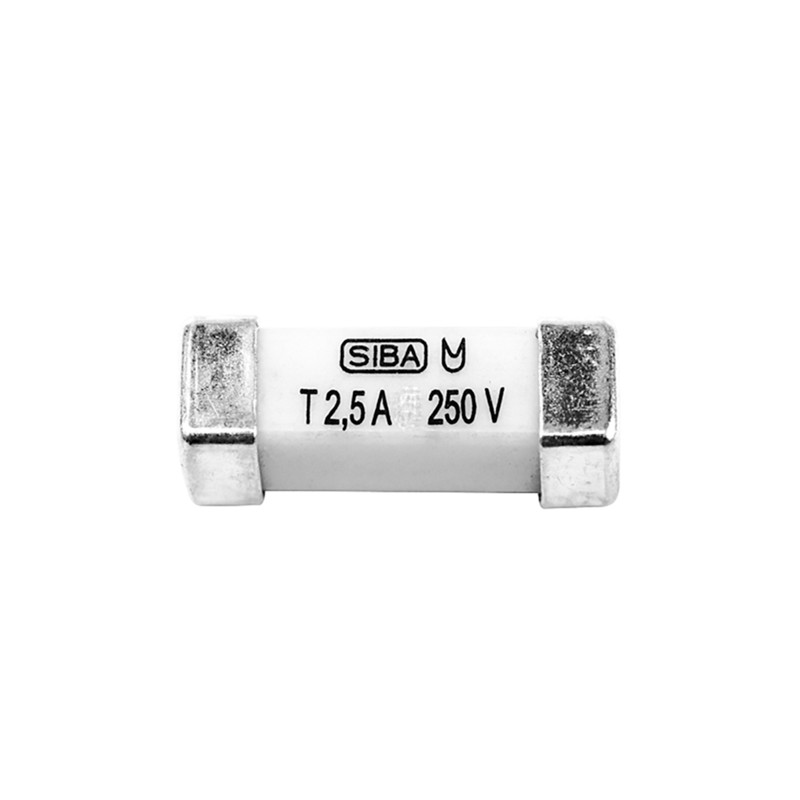

Siba SMD fuse series 160012

Time lag SMD fuses in a compact size (12x4,4x4,4mm) and suitable for a soldering heat of up to 260°C/10s (IEC60068). These fuses have a contact caps are made of silver-plated copper-alloy and their insulator is made of a ceramic tube with filling. We offer various types of this Siba series.

  • rated breaking capacity: 500A
  • rated voltage: 250V DC

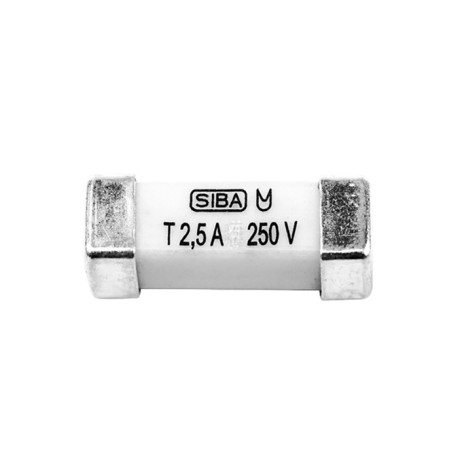

160012.3,15GT, Siba SMD fuses, time lag, 12x4,4mm, 160012 series

160012.3,15GT

253570 160012.3,15GT 160012.3,15GT Siba SMD fuse series 160012. Time lag SMD fuses in a compact size (12x4,4x4,4mm) and suitable for a soldering heat of up to 260°C/10s (IEC60068). These fuses have a contact caps are made of silver-plated copper-alloy and their insulator is made of a ceramic tube with filling. We offer various types of this Siba series. rated breaking capacity: 500A rated voltage: 250V DC

Specifications

manufacturer
Manufacturer's name 160012.3,15GT
Voltage drop, max. [mV] 220
Melting integral [A²s] 20
Rated current [A] 3,15
Data Sheet

Unit price

0,737 €

Stock: 200
Further delivery:
CW 02/2026

Minimum order quantity 10 units or
multiples of 10.
