160516.8GT

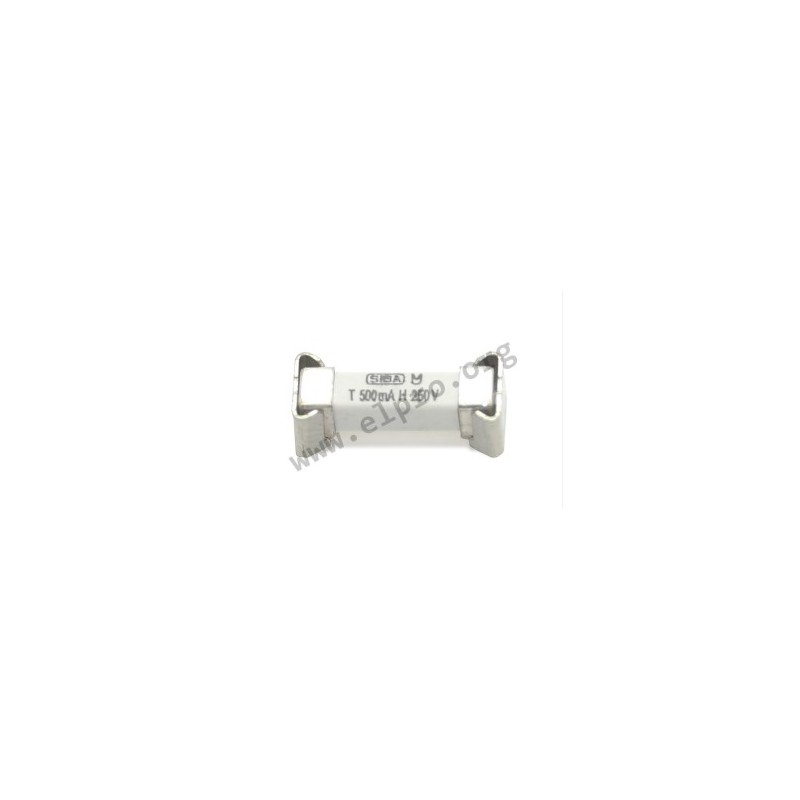

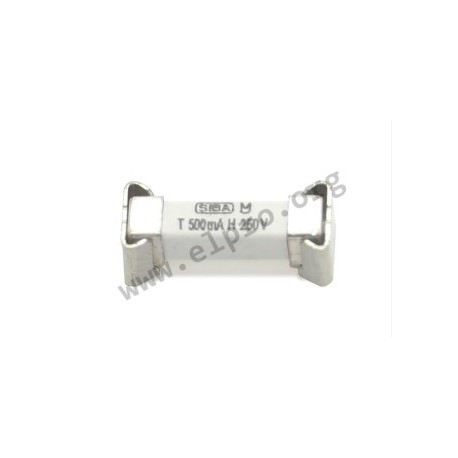

SIBA micro fuse series 160516

  • time lag surface mount fuses with fuse clips
  • insulating body is a ceramic tube with filling
  • with copper-alloyed und silver-plated contact caps
  • in a very small size (4,5x16mm)
  • resistance to soldering heat of up to 260°C (10s) according to IEC60068
  • rated voltage: 305V

160516.8GT

131263 160516.8GT 160516.8GT SIBA micro fuse series 160516. time lag surface mount fuses with fuse clips insulating body is a ceramic tube with filling with copper-alloyed und silver-plated contact caps in a very small size (4,5x16mm) resistance to soldering heat of up to 260°C (10s) according to IEC60068 rated voltage: 305V

Specifications

manufacturer
Manufacturer's name 160516.8GT
Voltage drop, max. [mV] 90
Melting integral [A²s] 160
Rated current [A] 8
Data Sheet

Unit price

1,26 €

Stock: 1500
Further delivery:
CW 30/2024

Minimum order quantity 10 units or
multiples of 10.
